Description of PICKit (3.5)

PICkit 3.5 In-Circuit Debugger/Programmer compatible to Microchip uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. The PICkit3.5 allows debugging and programming of PIC and dsPIC Flash microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE).:

• USB (Full speed 12 Mbit / s host PC interface)
• Real-time
• MPLAB IDE compliant execution (free download from Microchip)
• Built-in over voltage / short circuit monitor
• Firmware upgradable from PC / Web download
• fully closed
• diagnostic LED ( power, busy, error)
• the program read/write and microcontroller memory data
• clear space with verification program memory
• Freeze-peripherals at breakpoint
• program up to 512K byte flash with the Programmer-to-Go
• ICSP cable included

Detail:

Specifications and compatibility of PICKIT 3.5 Programmer:

• USB (the highest speed in the PC interface is 12 Mbits / s)
• Real-time execution
• MPLAB IDE compatible
• Built-in high voltage / short circuit monitor
• Fully Closed Case
• PC / Web Upgrade-able Hardware Software
• Definition LEDs (Power, busy, error)
• Micro controller’s data memory and program write / read
• Deleting the Memory Area of the Program with Verification
• Cutting Point Peripherable Peripherals
• With the ‘Programmer to go’ feature, you can put the “hex” code pre-loaded into your memory without your computer.
• Including ICSP cable

Online Availability in Pakistan:

• Anywhere in Pakistan

USB Connection:

•  Available

Components:

• PIC
• Flash Memory:  “512 Kb”

Weight:

• 96 gram

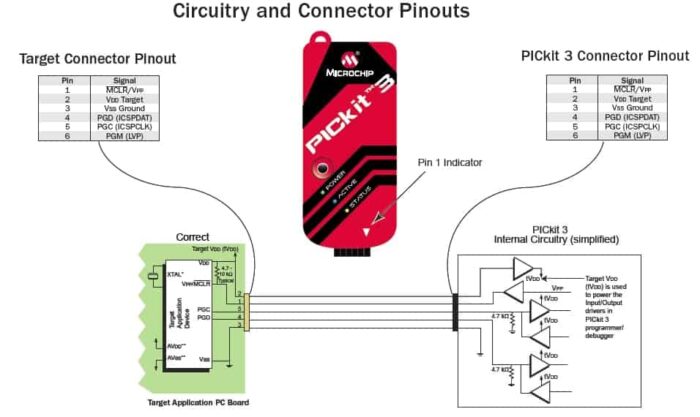

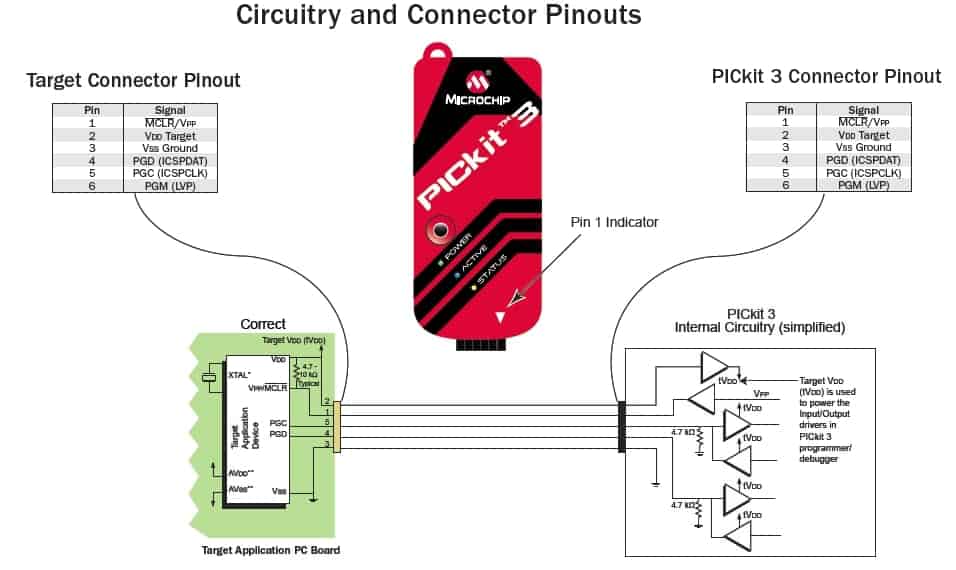

Latest PicKit 3.5 pin configuration:

1. Vpp(High)/MCLR(LOw)
2. VDD Target
3. Vss (ground)
4. ICSPDAT/PGD
5. ICSPCLK/PGC
6. LVP
