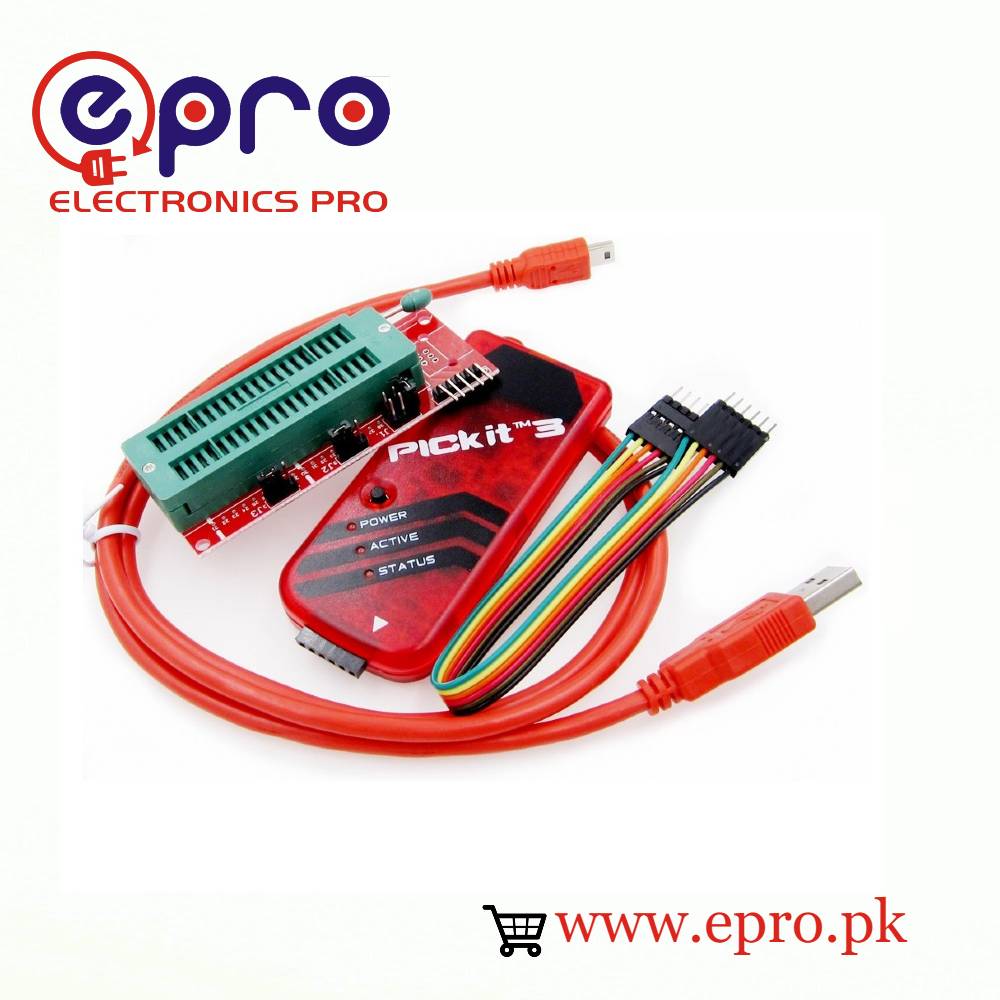

Product Description of PICkit 3 Programmer Development with Adapter
PICkit 3 has a high download speed debugger. Here the USB connection is more stable than ICD2. It also has an offline burning function. It develops debug programming. It does products batch offline burning or make. It has a power supply input. The inner voltages can be controlled by MPLAB IDE directly. It also supports Windows 7. It has reflowed soldering processing. It is more stable. It has a PIC developing data and C language development tool manual. It is used for a lot of PIC basic experiment program code.
Technical Specifications of PICKit 3 Programmer Board:
Its full size is 93.50 x 39.80 x 12.90 +- 0.2 mm.
It has full speed USB support and using windows standard drivers.
It has real-time execution
Its processor runs at maximum speeds.
It has built-in over-voltage or short circuit monitors.
It has low voltages to 5V. and its range is 1.8V to 5V.
It can read/ write a program.
It has a data memory of the microcontroller.
It has diagnostic LEDs like Power, Active, and Status.
It has 1 erase of all memory types like EEPROM, ID, configuration, and Program with verification.
Its peripherals freeze at the breakpoint.
How to Use Programming Adapter:
First, install the microcontroller of 28 pins or 40 pin microcontrollers. This short circuit cap on the A position.
On the left flag line 8, 14, 18, 20 pin microcontrollers will be aligned. And shorting the cap on the B position.
It supports the following programming microcontrollers:
PIC16/18XX 40PIN series devices (except 16F59)
PIC16/18XX 28PIN series devices (except 16F57)
PIC16/18XX 18PIN series devices
And PIC 8 PIN/ 14PIN /20PIN family of devices (except 10FXX)
