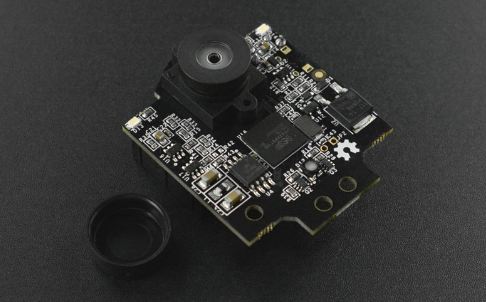

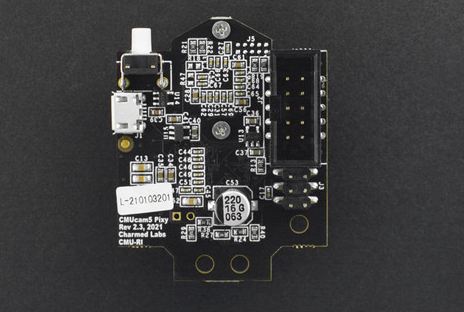

Pixy 2 CMUcam5 Image Sensor (Robot Vision)

• Lens type: Standard M12
• Processor: NXP LPC4330, 204 MHz, dual core
• Image sensor: Aptina MT9M114, 1296×976 resolution with integrated image flow processor
• Lens field-of-view: 60 degrees horizontal, 40 degrees vertical
• Power consumption: 140 mA typical
• Power input: USB input (5V) or unregulated input (6V to 10V)
• RAM: 264K bytes
• Flash: 2M bytes
• Available data outputs: UART serial, SPI, I2C, USB, digital, analog
• Dimensions:1.5” x 1.65” x 0.6”
• Weight: 10 grams
• Integrated light source, approximately 20 lumens

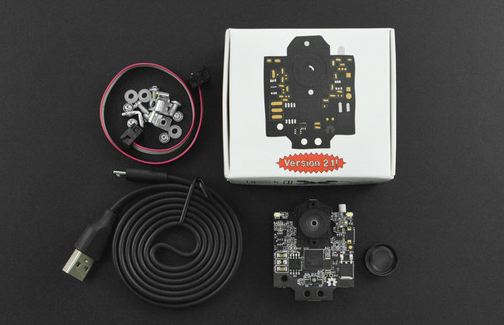

Package Includes:

• Pixy 2 CMUcam5 Image Sensor x1
• FC-10P to FC-6P Cable x1
• Screw Package x1
