Pan Tilt Bracket for Servo Motor SG90S MG90S in Pakistan

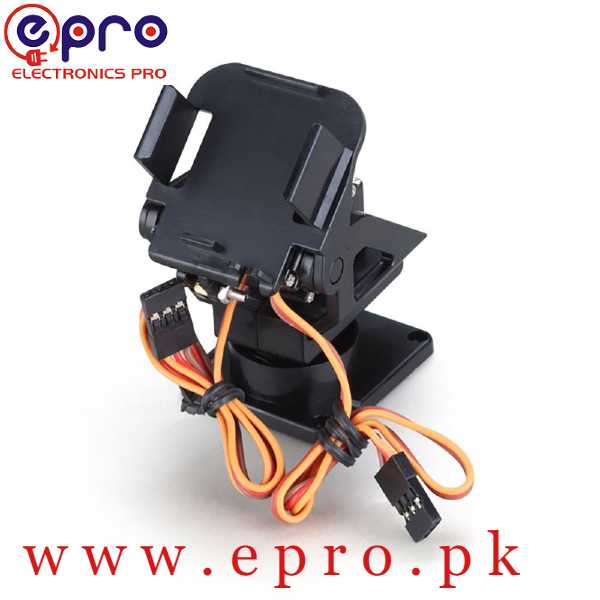

PV systems have pan-tilt servo brackets. servo brackets are used for mounting other sensors such as the Ultra-sonic Sensor module or camera or other sensors. but it is suitable for the installation of a camera of 28mm x 28mm. These tilt servo brackets are not fit for 32 or 38 mm cameras. these servo brackets are supplied in the un-assembled form. The user has to install servo motors and cameras.

Applications of Pan Tilt Bracket:

• It is used in FPV Camera systems
• it is used in Object tracking Systems
• it is also useful for Security Camera application
• it is used in Ultrasonic Distance measurement and Ultrasonic Radars

Technical Specifications:

• Supported Motors weight is  9g to 12g servos (such as SG90, MG90, MG90S)
• Number of Axis are 2 axis
• its Weight is 15g
• Number of Plastic Pieces are 4
• The material used Plastic / Nylon
• Supported Camera size is 28mm x28mm
• Measurement of the base plate is  37mm (L), 33mm (W), 3mm thickness

Package Includes:

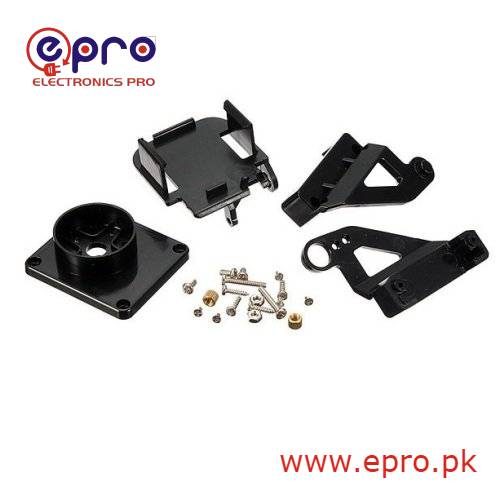

• ONE Servo bracket PT Pan/Tilt Camera Platform for FPV Systems (un-assembled, servo motors, and the camera is not included)
• ONE Set of Screws and nuts
