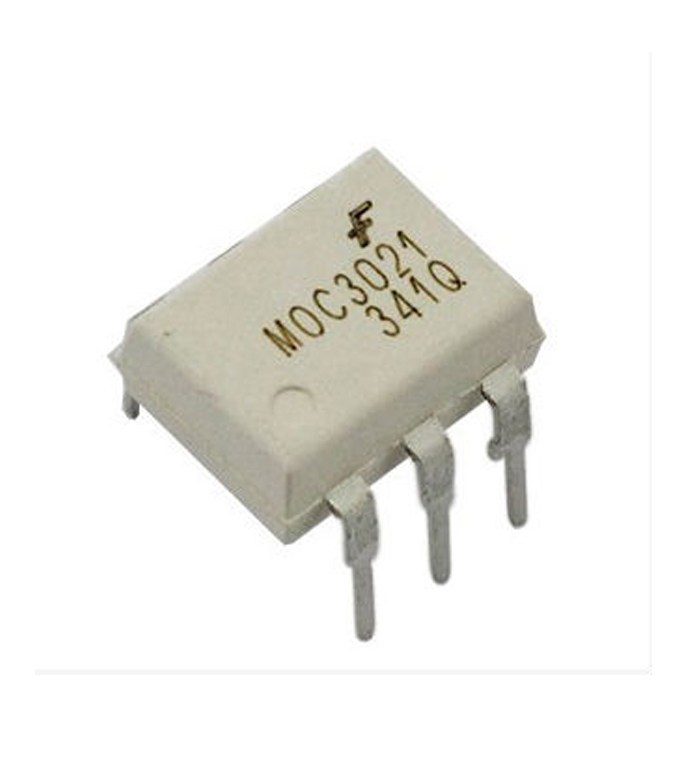

The MOC3021/3020Series consists of gallium arsenide infrared emitting diodes, optically coupled to a silicon bilateral switch. To order devices that are tested and marked per VDE 0884 requirements, the suffix ”V” must be included at end of part number. VDE 0884 is a test option. They are designed for applications requiring isolated triac triggering.
Features:
- 400 V Phototriac Driver Output
- Gallium-Arsenide-Diode Infrared Source and Optically-Coupled Silicon Traic Driver (Bilateral Switch)
- UL Recognized . . . File Number E65085
- High Isolation . . . 7500 V Peak
- Output Driver Designed for 220 Vac
- Standard 6-Terminal Plastic DIP
- Directly Interchangeable with Motorola MOC3020, MOC3021, MOC3022, and MOC3023
Applications:
- Solenoid/Valve Controls
- Static AC Power Switch
- Lamp Ballasts
- Solid State Relays
- Interfacing Microprocessors to 115 Vac Peripherals
- Incandescent Lamp Dimmers
- Motor Controls
