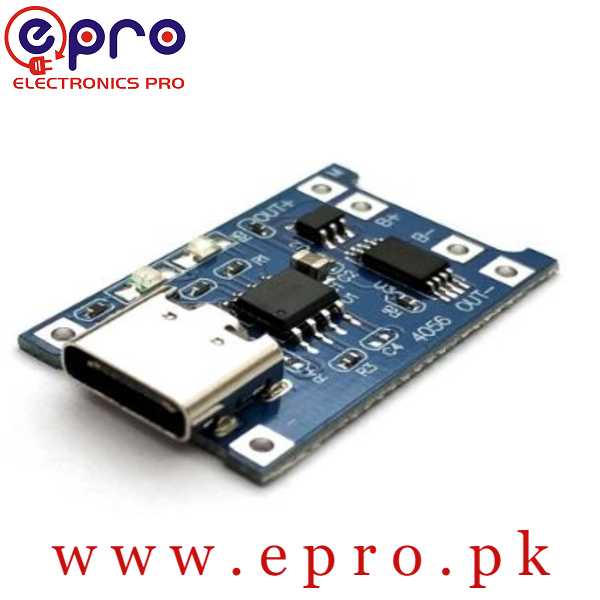

TP4056 Lithium Battery Charging Board 1A Type C Overview

It may no voltage between Output+ and Output- for the very first time. Then 5V charge your energy. It can activate the protection circuit and battery from the B+ B-. after that draw a line on the short open also need to be recharged to activate the protection circuit. The charger must be able to output 1A or more to do when we are using a mobile phone charger input or may not charge.

+ type C female and next –pads for power input these can access 5V. B+ then the lithium battery and B- are the negative lithium batteries. OUT+ and OUT- connected to the load. Its positive and negative electrodes connected the mobile booster plate or another load. Just connect the battery to the B+ B-. and inserted into the USB female Mobile Phone charger. The red light indicates the TP4056 Lithium Battery Charging Board being charged. And the green light to full. Get all types of Modules, Charging Boards, Sensors, Programmers from Pakistan’s No One Online Store epro.pk.

Specifications of TP4056 5V 1A USB Type C 18650 Lithium Battery Charging and Protection Board in Pakistan:

• Inputs with type C females can be directly inputted to do with the phone charger rechargeable lithium battery.
• Still retains the input voltage wiring pads that can be very convenient DIY.
• Its input voltages are 5V.
• Its charging cut-off voltage is 4.2V -+1%.
• Its maximum charge current is 1000mA.
• 2.5V is battery over-discharge protection voltage.
• 3A is its battery overcurrent protection current.
• Its size is 2.6 x 1.7cm.

Package Included:

One Piece of TP4056 Lithium battery Board 1A type C.
