Ever imagine how the traffic light works? Well, now you can do your own program for traffic light control with this Traffic Light LED module. Compatible with any microcontroller, yes any microcontroller that can output digital high or low like Arduino, Raspberry Pi, micro: a bit too. It is a common cathode LED so you just need four wires to the controller and logic high will trigger/activate the respective LED.
Traffic Light is one of the popular electronic projects among final year projects and RBT (Reka Bentuk Teknologi). Modeling or simulating an actual traffic light system just gets easier.

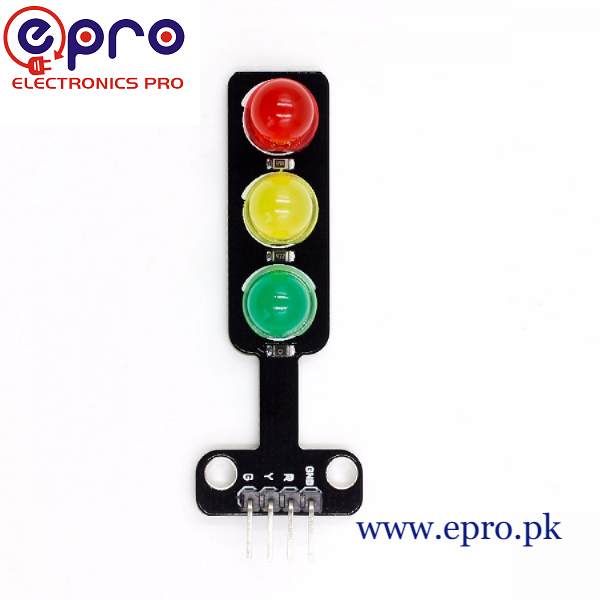

It is being arranged to be the same as normal traffic light where the Red is at the top, Yellow at the middle, and Green at the bottom. Additionally, this board uses a 5mm (diameter) size LED, offering a clear view of the light even in a compact size. Not to forget all three LEDs are diffused type so widening the viewing angle too.
- Traffic Light LED module
- Three colors LED, Red, Yellow, and Green
- Ready with 4-way header pin, label:
- G -> Green LED
- Y ->Yellow LED
- R -> Red LED
- G -> Common Ground(Common Cathode)
- Compatible with 3.3V or 5V controller:
- Raspberry Pi
- Micro: bit
- 5mm diffused type LED
- Logic high to activate LED
- Compatible with PWM signal to control the brightness
- 1 x Traffic Light LED module
