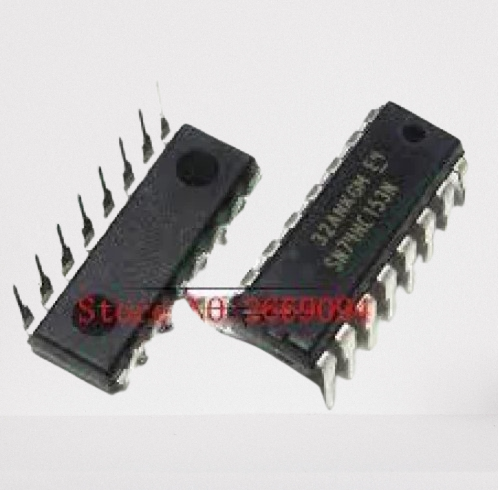

74HC153 Dual 4-Input Multiplexer IC

The 74HC153 is a Dual 4-Input Multiplexer IC designed for efficient data selection and routing in digital circuits. It features two 4-input multiplexers, providing high flexibility for logic control in complex systems. This IC operates within a wide voltage range and offers fast switching times with low power consumption, making it ideal for a variety of applications.

Key Features:

• Wide Operating Voltage Range: The IC operates with a voltage range of 2V to 6V, offering flexibility for various power supply configurations.
• High Output Drive Capability: Outputs can drive up to 15 LSTTL loads, making it suitable for driving multiple devices.
• Low Power Consumption: Consumes minimal power, with a maximum ICC of 80 µA, making it energy-efficient for continuous operation.
• Fast Switching: The typical propagation delay (tpd) is just 9 ns, ensuring quick signal processing for fast systems.
• Output Drive: Provides ±6 mA output drive at 5V, ensuring strong output signals to drive downstream components.
• Low Input Current: The IC operates with a very low input current of 1 µA max, ensuring minimal current draw and reduced power consumption.
• Multiplexing Functionality: Ideal for multiplexing from n lines to one line, efficiently selecting data or signals in a digital circuit.
• Parallel-to-Serial Conversion: Capable of performing parallel-to-serial data conversion, useful in applications like data transmission and processing.
• Strobe (Enable) Line: Includes a strobe (enable) line, enabling cascading of multiplexers for connecting multiple ICs in series, allowing n lines to n lines for expanded functionality.

Applications:

The 74HC153 Dual 4-Input Multiplexer IC is commonly used in:

• Data Selection and Routing: Used in systems that need to select one data line from multiple sources.
• Signal Processing: Ideal for applications involving signal routing and switching.
• Data Communication: Performs parallel-to-serial data conversion for communication systems.
• Cascading Logic Systems: Enables cascading of multiple multiplexers to handle larger numbers of inputs and outputs.

Datasheet:

For detailed technical specifications and information, refer to the 74HC153 Datasheet.

Package Includes:

• 1 x 74HC153 Dual 4-Input Multiplexer IC
