7475 74LS75 4-BIT BISTABLE LATCHES

7475 / 74LS75 4-Bit Bistable Latches

The 7475 (74LS75) is a 4-bit bistable latch IC that is designed for use in digital systems requiring memory storage and data control. This IC contains four independent latches, which can store and retain 4 bits of data. Ideal for use in systems where data needs to be latched and held until needed, the 7475 provides efficient and reliable performance in a wide variety of applications.

Key Features:

• 4 Independent Latches: Contains four separate bistable latches, allowing the simultaneous storage of 4 bits of data.
• Controlled Data Latching: Each latch is controlled by a clock signal and enables the capture of data on the rising edge of the clock, providing precise control over data storage.
• Active Low Outputs: Outputs are active low, which means the stored data can be accessed in its inverted form for easier integration with other digital circuits.
• Standard TTL Logic: The IC is compatible with TTL logic, making it easy to interface with other TTL-based systems.
• Wide Operating Voltage: Operates within a 4.75V to 5.25V DC range, making it compatible with most 5V TTL systems.
• Low Power Consumption: Designed for low power operation, the 7475 is energy-efficient and suitable for long-duration use in digital circuits.
• Fast Switching: Provides quick response times, ensuring reliable operation in high-speed digital circuits.
• High Noise Immunity: Built with robust noise immunity, ensuring reliable data storage in environments with high electrical noise.

Applications:

The 7475 4-bit bistable latch is widely used in:

• Data Storage: Temporarily holding data bits in applications such as registers and buffers.
• Timing Circuits: As a latch for synchronization and timing control.
• Data Communication: In digital systems requiring sequential data storage or controlled data flow.
• Digital Control Systems: Used in microcontrollers, processors, and other logic circuits for controlling data storage and retrieval.

Package Includes:

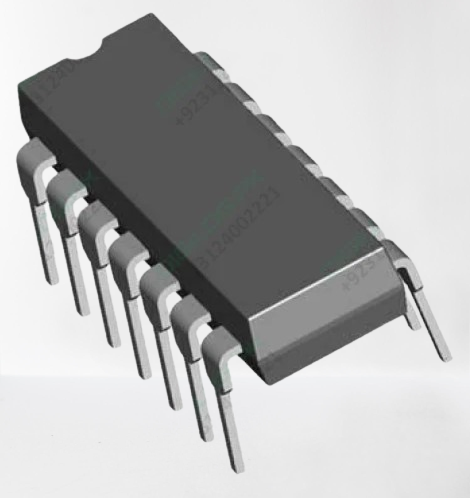

• 1 x 7475 (74LS75) 4-Bit Bistable Latches IC
  • Package Type: Typically available in DIP-16 or SOIC for easy integration into circuit boards.

This description highlights the 7475 / 74LS75 bistable latch IC, emphasizing its features, applications, and advantages in digital systems. It’s an ideal solution for memory storage and data control in high-speed, low-power applications.
