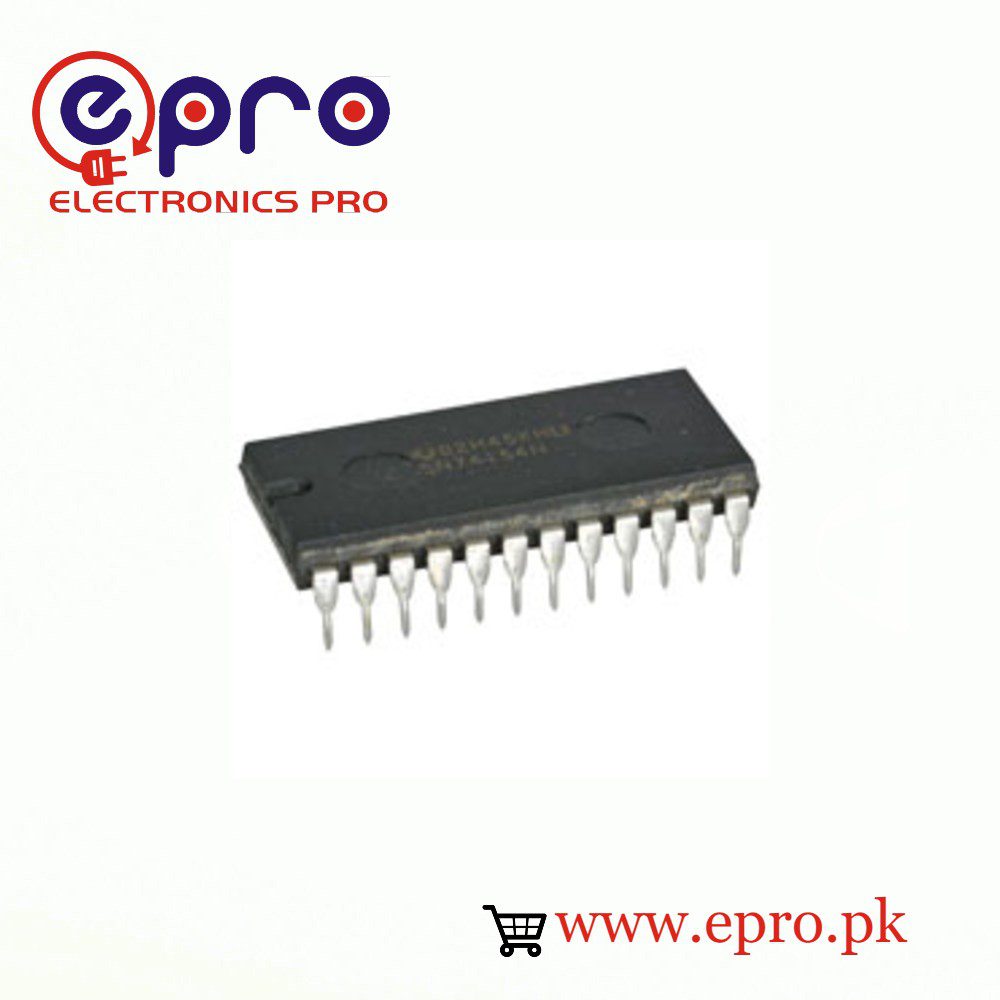

74154 IC 4 Line to 16 Line Decoder Demultiplexer in Pakistan


Each or these 4-line-to-16-line decoders utilizes TTL circuitry to decode four binary-coded inputs into one of sixteen mutually exclusive outputs when both the strobe inputs, G1 and G2, are low. The demultiplexing function is performed by using the 4 input lines to address the output line, passing data from one of the strobe inputs with the other strobe input low. When either strobe input is high, all outputs are high. These demultiplexers are ideally suited for implementing high-performance memory decoders. All inputs are buffered and input clamping diodes are provided to minimize transmission-line effects and thereby simplify system design.


74154 datasheet pinout


1. Decodes 4 binary-coded inputs into one of 16 mutually exclusive outputs
2. Performs the demultiplexing function by distributing data from one input line to any one of 16 outputs
3. Input clamping diodes simplify system design
4. High fan-out, low-impedance, totem-pole outputs
5.Typical power dissipation 170 mW
