74LS20 Dual Four input NAND

74LS20 – Dual Four-Input NAND Gate IC

The 74LS20 is a dual 4-input NAND gate IC, designed to perform logical NAND operations on four inputs per gate. This IC provides two independent NAND gates, each with four inputs, allowing for flexible and efficient logic implementations in digital circuits.

Key Features:

• Dual Four-Input NAND Gates: Provides two separate NAND gates, each accepting four input signals, making it ideal for applications requiring multiple input logic operations.
• High-Speed Performance: Features fast switching times, making it suitable for high-speed applications in digital electronics.
• Standard TTL Logic: The 74LS20 is part of the Low Power Schottky (LS) family, offering faster response times and lower power consumption compared to standard TTL logic families.
• Wide Supply Voltage Range: Operates within a voltage range of 4.75V to 5.25V, ensuring compatibility with typical TTL logic circuits.
• Low Power Consumption: Efficient power usage, with typically 10 mA supply current at Vcc = 5V.

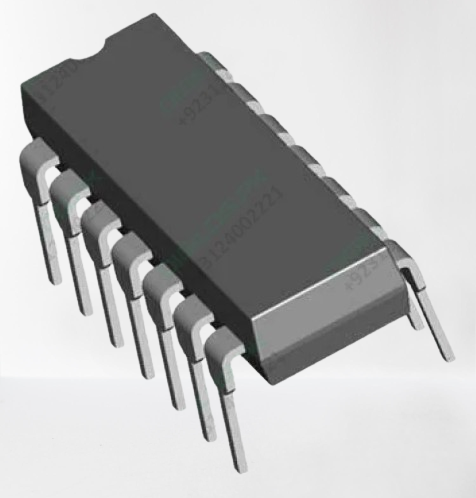

• Standard Pin Configuration: This IC features an industry-standard 14-pin Dual In-line Package (DIP) configuration, ensuring easy integration into most designs.

Applications:

• Digital Logic Circuits: Ideal for implementing multiple logic operations, such as in combinational and sequential logic circuits.
• Signal Processing: Suitable for high-speed signal processing in digital systems, where complex logical operations with multiple inputs are required.
• Counters, Shift Registers, and Timers: Used in a wide range of digital applications including frequency dividers, counters, and digital timing circuits.
• Data Transmission: Can be employed in encoding, decoding, and error-checking applications in communication systems.

Package Includes:

• 1 x 74LS20 Dual Four-Input NAND Gate IC (14-Pin DIP Package)

The 74LS20 is an essential component for designing high-speed, low-power digital logic circuits. Whether used in basic logic operations or more complex applications, this dual four-input NAND gate IC ensures reliable performance in a variety of modern digital systems.
