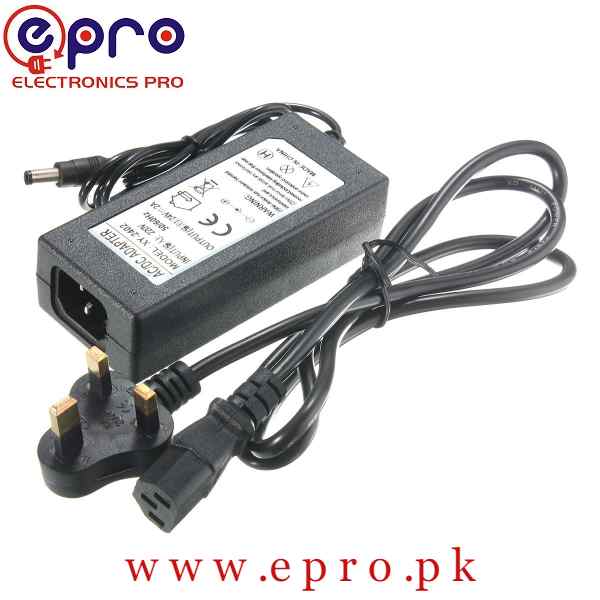

AC DC adaptor 24V 2a power adapter 12w with EU US UK AU plug power cord
Features:
100% Brand New
Length of the cable: 100CM
Input:100V-240V AC 50/60Hz 0.3A
Output:24V DC 2A
Output adaptor jack size: 5.5mm*2.1mm /5.5*2.5mm optional
Protections: Short circuit/Overload/Overvoltage
100% full loading burn-in test
Specifications:
| Oupt power range | 24V 2A |
| The adapter size | 73*27*77MM(L’W’H’) |
| The adapter weight | 0.075kg/pc |
| Input Rated Voltage | 100Vac~240Vac |
| Input Frequency Range | 47Hz~63Hz |
| Input Current | less than 0.5A |
| Input Inrush Current | less than 50A |
| Efficiency | 80%(MIN)at Rated Voltage |
| DC Output Voltage | 24V± 5% |
| DC Output Current | 2A |
| DC Output Power | 12W |
| Leakage Current | less than 1mA |
| Standby power | less than 0.5w |
| DC connector | 5.5*2.1*10mm/5.5*2.5 *10mm(optional) |
| DC cable | 1.2m cable (optional) |
| Ripple and Noise | less than 120Mv at full road with 20MHz bandwidth |
| Turn On Delay Time | less than 3S (AC:110V and full load) |
| Dielectric Voltage | A IEC320 three pin input—output(FG)3000Vac one minute |
| Safety protection | output voltage protection (150%-180% rated output current) |
| output current protection (150%-180% rated output current) | |
| short current protection | |
| Operating Temperature | 0°C – +55°C |
| Storage Temperature | -20°C – +85°C |
| Certificates | Ce Ldv EMC RoHS FCC BS |
