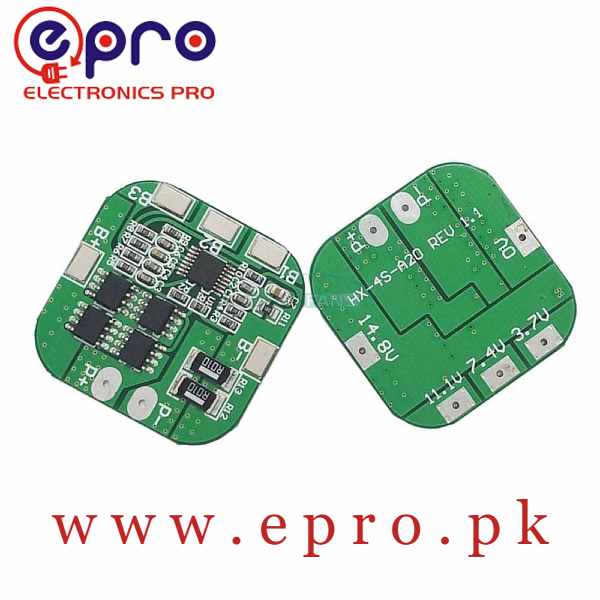

Battery Protection Board 4S 20A 14.8V BMS for 18650 Lithium Ion Cell HX-4S-A20 in Pakistan

  • Over charge voltage 4.25- 4.35V +- 0.05V.
  • Over-discharge voltage 2.3- 3V +- 0.05V
  • Max working current is 10A.
  • Max peak current is 20A.
  • Working temperature is -40 to 50.
  • Storage temperature is -40 to 80.
  • Small current id 6uA.

400.00

Description

Battery Protection Board 4S 20A 14.8V BMS for 18650 Lithium Ion Cell HX-4S-A20





Specifications of Lithium Battery Protection Board Overcharge Short Circuit Over-Discharge Current Limit Protection:



  • Over charge voltage 4.25- 4.35V +- 0.05V.
  • Over-discharge voltage 2.3- 3V +- 0.05V
  • Max working current is 10A.
  • Max peak current is 20A.
  • Working temperature is -40 to 50.
  • Storage temperature is -40 to 80.
  • Small current id 6uA.
  • The life cycle is 50000 hours.
  • Resistance is 45m Ohm.
  • Its size is 35 x 35 x 3mm
