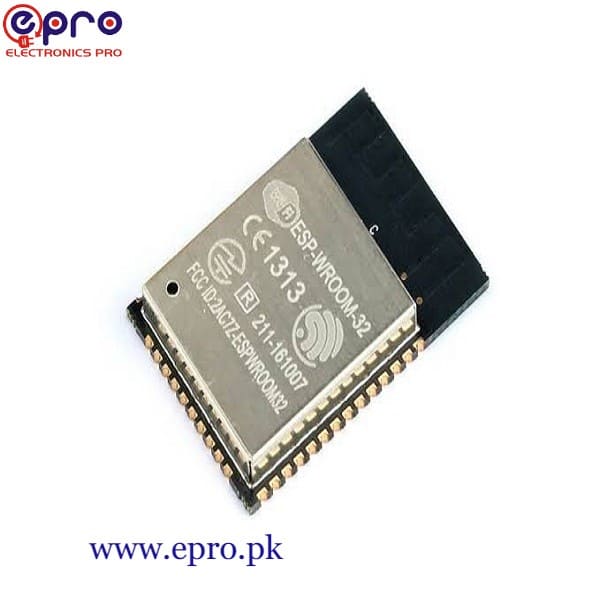

ESP32 WiFi-BT-Module ESP-WROOM-32

The ESP8266 started a small revolution by bringing WiFi to a small and cheap package that also had enough processing power and enough pins to get small things done. Now get ready to take your bite-sized WiFi capabilities to the next level with the ESP32 Development Board!
ESP32-WROOM-32 is SMD module which you can integrate to your own PCB design. Espressif has took care for all certifications and regulations so you can use it as is without certification hassles.
SPECIFICATION
CPU and Memory
• Xtensa® Dual-Core 32-bit LX6 microprocessors, up to 600 DMIPS
• 448 KByte ROM
• 520 KByte SRAM
• 16 KByte SRAM in RTC
• QSPI Flash/SRAM, up to 4 x 16 MBytes
• Power supply: 2.2 V to 3.6 V
Clocks and Timers
• Internal 8 MHz oscillator with calibration
• Internal RC oscillator with calibration
• External 2 MHz to 40 MHz crystal oscillator
• External 32 kHz crystal oscillator for RTC with calibration
• Two timer groups, including 2 x 64-bit timers and 1 x main watchdog in each group
• RTC timer with sub-second accuracy
• RTC watchdog
Advanced Peripheral Interfaces
• 12-bit SAR ADC up to 18 channels
• 2 × 8-bit D/A converters
• 10 × touch sensors
• Temperature sensor
• 4 × SPI
• 2 × I2S
• 2 × I2C
• 3 × UART
• 1 host (SD/eMMC/SDIO)
• 1 slave (SDIO/SPI)
• Ethernet MAC interface with dedicated DMA and IEEE 1588 support
• CAN 2.0
• IR (TX/RX)
• Motor PWM
• LED PWM up to 16 channels
• Hall sensor
• Ultra low power analog pre-amplifier
Development Support
• SDK Firmware for fast on-line programming
• Open source toolchains based on GCC
Operating Temperature Range: -40 ° C to + 85 ° C
Package size: 18mm x 25mm x 3mm

DOCUMENTS

DFRobot ESP32 Module Schematic
DFRobot ESP32Module layout
ESP_WROOM_32 Datasheet
ESP32 Technical Reference Manual
ESP32 Resource Download
