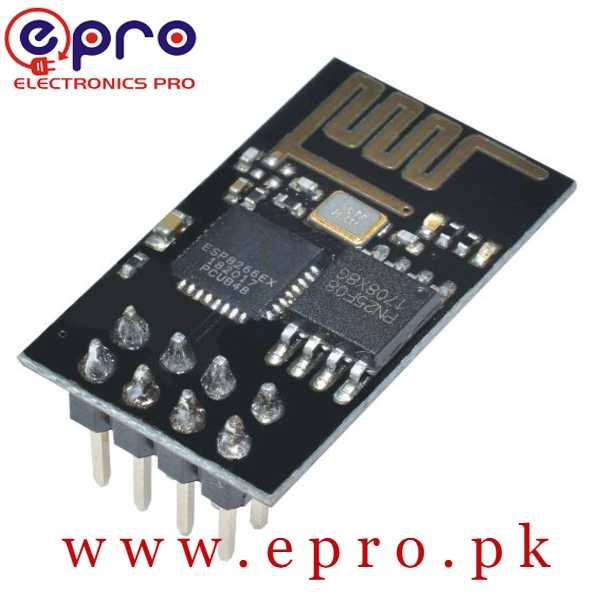

ESP8266 WiFi ESP-01 Serial Module Now in Pakistan
what is an ESP control module? this question arose in everyone’s mind how is reading this… Below I have mentioned an explanation about it. ESP8266 WiFi ESP-01 is the communication module. it is a tiny and cheap module. esp8266 esp-01 Arduino makes an autonomous WIFI connection with your Arduino or Raspberry Pi micro-controller. A Wifi esp-01 serial module works in both directions. This serial module not only uses a TX/RX serial link to receive and send data, but it is also acting as a host for Wifi applications. esp 01 connect to wifi and User can also be able to change the configuration of ESP 01 Serial Module. Users can get access to all these features by connecting 2 cables to link micro-controller cards. these micro-controllers will be Arduino, Nucleo, Seeeduino, Raspberry Pi, etc. The user will connect these micro-controllers to the ESP8266 Wifi Serial Module. Connect the Micro-controller to the ESP8266 is very straightforward. esp8266 wifi module Arduino is used in Arduino projects for WIFI.
What is ESP 01?
How does the esp8266 Wifi module work?
What is the ESP module?
The ESP8266 module is more useful for electronics project makers because it is a compact device and ESP01 can be integrated into small connected objects like watches, bracelets, etc. It has excellent data storage capacity. and good onboard processor power which is enough to reduce response time to a minimum. Serial Modules also have GPIO pins, which are the use of sensors and other application-specific devices. Arduino Uno wifi esp8266 is also useful for electronics and electrical students.
These are the esp-01 specs which are mentioned below:
Technical specifications of the ESP8266 WiFi Module
TCP/IP protocol is integrated into it.
WiFi Direct (P2P), SoftAP
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regulators, DCXO and power management units
Output power: +19.5 dBm in 802.11b mode
less than 10 uA is Power down for leakage current
Integrated low-power 32-bit processor, that can be used as an application processor
SDIO 1.1/2.0, SPI, UART
STBC, 1×1 MIMO, 2×1 MIMO
A-MPDU and A-MSDU aggregation, 4 ms guard interval
Wake up and transmission of packets in less than 2 ms
Standby power consumption of less than 1 mW (DTIM3)
Dimensions: 21.1 × 13.2 mm
