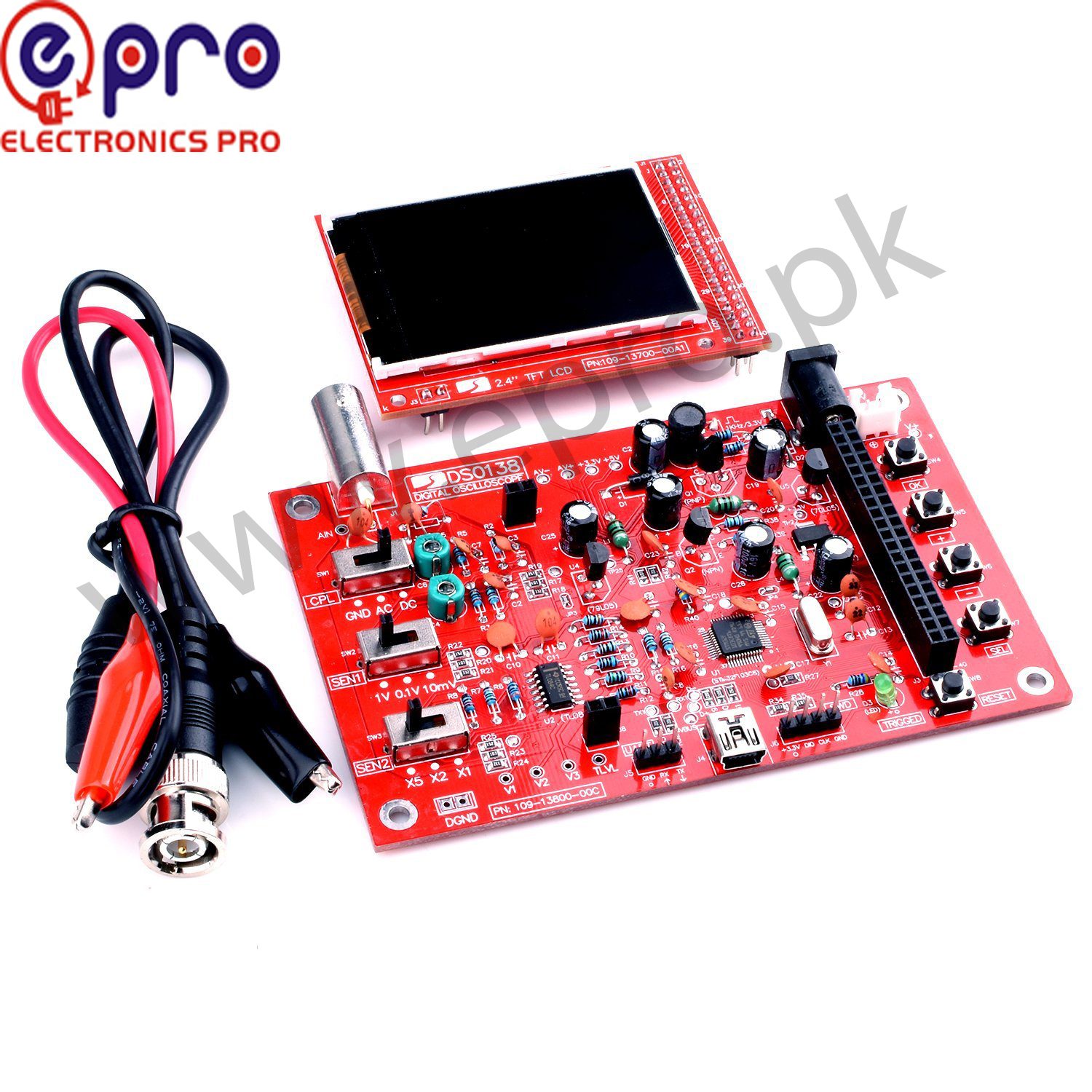

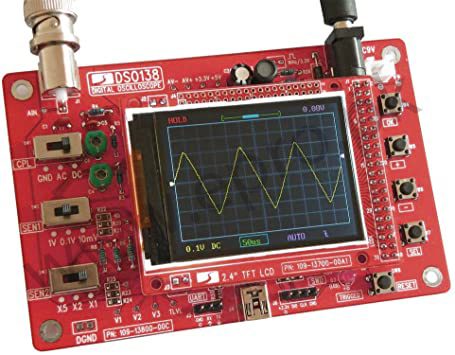

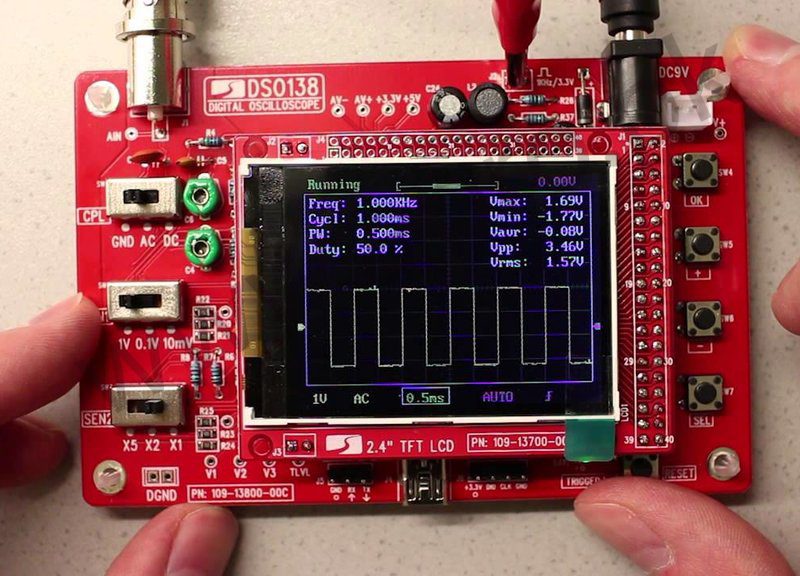

Fully Assembled DSO138 2.4″ TFT Digital Oscilloscope

6,250

Color: Red
For Analog bandwidth: 0 – 200KHz
Sampling rate: 1Msps max
Sensitivity: 10mV/Div – 5V/Div
Sensitivity error: < 5%
Vertical resolution: 12-bit
Timebase: 10us/Div – 500s/Div
Record length: 1024 points
Add 10,000 to cart and get free shipping!

Purchase this product now and earn 6250 Points!

Compare
Description

Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display can be used as ARM test development board.
Available source, Capable people can be secondary development on the basis of the suite, for example, it can be changed to Millivoltmeter, data loggers, and so on (we don’t supply any technical support about that).
The circuit is simple and the kit is inexpensive

Specifications:
Color: Red
For Analog bandwidth: 0 – 200KHz
Sampling rate: 1Msps max
Sensitivity: 10mV/Div – 5V/Div
Sensitivity error: < 5%
Vertical resolution: 12-bit
Timebase: 10us/Div – 500s/Div
Record length: 1024 points

PCB size: 117 x 76mm
Screen size: 52 x 40mm

1X Fully Assembled DSO138 2.4″ TFT Digital Oscilloscope
