₨1,530
Its working voltages are 3.2 to 5.5V.
Its default communication distance is approximately 600m. Its communication distance up to 10m. and its baud rate is 5000bps.
Its idle current value is 16mA.
Its working frequency is 433.4 to 473 MHz.
Its transmitting power is 100mW.
Its working model is FU3.
Its baud rate is 9600bps.
CH001 is its communication channel.
Its size is 27.8 x 14.4 x 4mm.

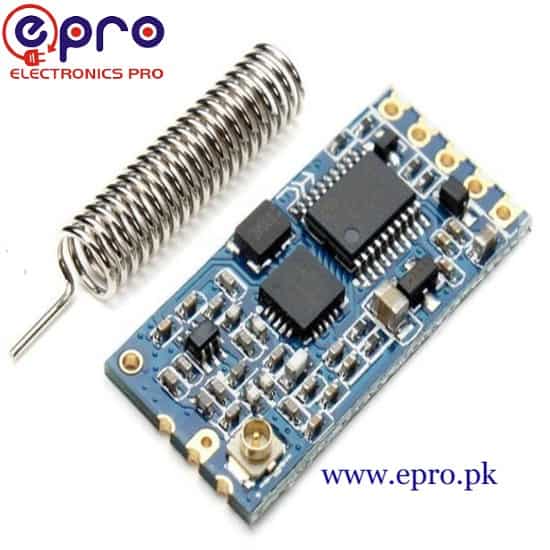

This HC-12 Wireless serial port module is a multichannel embedded transceiver module. Its working frequency is 433.4-473 MHz. it has 100 communication channels. It has a long transmission distance up to 10m in the open air. It has stamp holes edge design. And this design supports SMD installing which is easy to embed in the application devices. It has an on-board SMA and solder joint. There are two types of antenna connecting ports. Users can install the SMD coaxial antenna, helical antenna, or DIY 433MHz antenna. It is perfect for a DIY short distance wireless data transmission system such as a wireless sensor, smart building safeguard system, automation data acquisition, etc. Hc12 price is affordable and it works long-lasting. this product is available at epro.pk. HC-12 Bluetooth module is the advance form of the HC11 wireless RF serial UART module.
It has the feature of long-distance wireless transmission up to 1000m in open space and its baud rate 5000 bps in the air.
It is perfect to replace the Bluetooth in the short distance data transmission area.
Its working frequency is 433.4 to 473 MHz.
It consists of up to 100 communication channels.
It has a maximum of 100mW transmitting power.
It consists of a 3.2 – 5.5V low voltage power supply.
It consists of three serial pass-through modes.
It can be adapting to different application situations.
It has a compact size with stamp holes edge design.
It supports SMD installing embedded into the application devices easily.
Its working voltages are 3.2 to 5.5V.
Its default communication distance is approximately 600m. Its communication distance up to 10m. and its baud rate is 5000bps.
Its idle current value is 16mA.
Its working frequency is 433.4 to 473 MHz.
Its transmitting power is 100mW.
Its working model is FU3.
Its baud rate is 9600bps.
CH001 is its communication channel.
Its size is 27.8 x 14.4 x 4mm.
FU1:
its idle current is 3.6mA.
its serial rate is 1200, 2400, 4800, 9600, 19200bps, 38400bps, 57600bps, 115200bps, and air baud rate is 250000bps.
Its transmission delay time is 4 to 80mS.
FU2:
The idle current is 80uA.
Its serial rate is 1200, 2400, 4800 bps and, its air baud rate is 250000bps.
Its transmission delay time is 500mS.
FU3:
The idle current is 16mA.
Its serial baud rate is 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps.
Its transmission delay time is 4 to 80mS.
Package included:
One piece of 433 MHz wireless serial port module transceiver.
