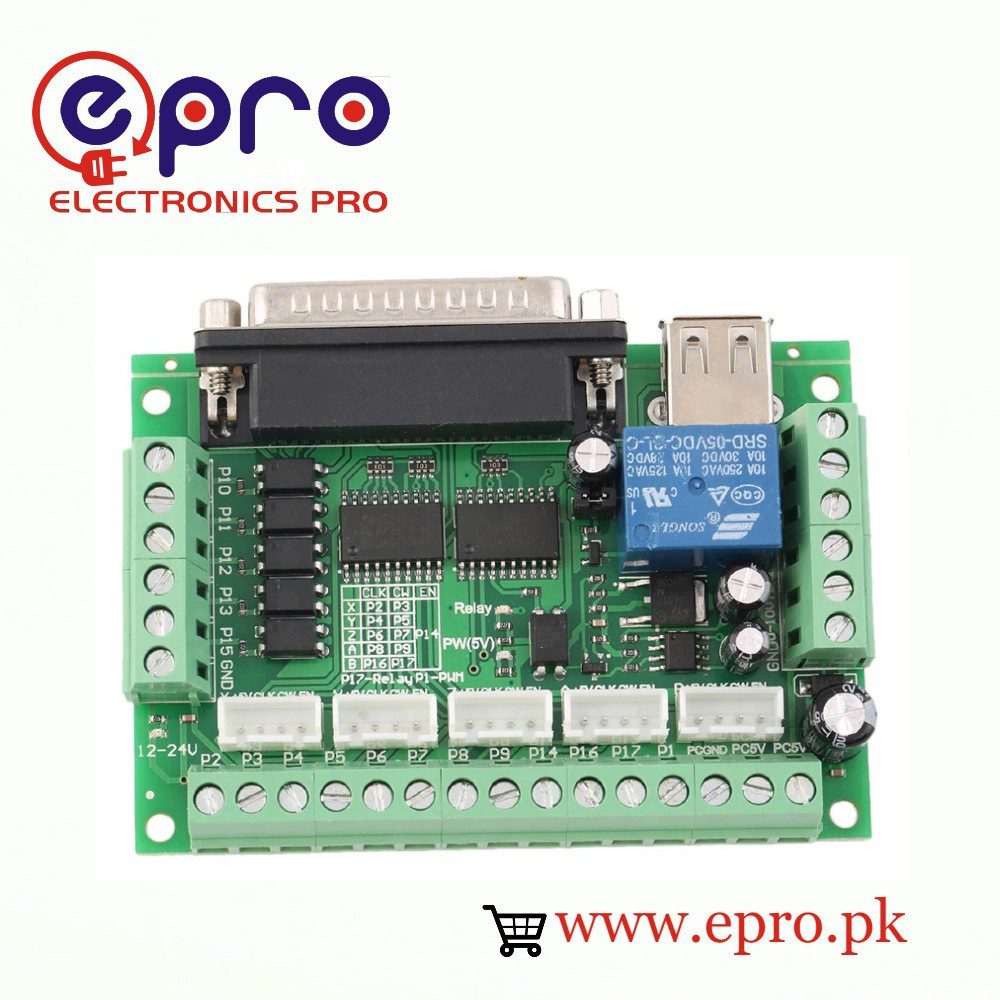

Description of 5 Axis MACH3 Interface Board CNC With Optocoupler Adapter Stepper Motor Driver
5 Axis MACH3 CNC is 100% brand new and high quality Quantity:1pc Weight:117 g Color: as picture show Size:90mmx60mmx15mm/3.54″x2.36″x0.59″(inch) (approx) ? Features: 1. Fully support control via the parallel port, such as MACH3, etc. 2. USB power supply and external power supply are separate for safety. 3. External power supply input: 12-24V. Equipped with an anti-reverse connection function. 4. All input signals will be isolated by optical coupler for further connection with emergency stop, tool setter, limit, etc for PC safety. 5. One relay output port for control spindle on/off. The output interface. is P17. 6. One 0-10V analog voltage output port for control of inverter that has the relative analog interface, and for control of spindle speed. The output interface is P1. 7. If all 17 interfaces are activated, drivers equipped with optical coupler can be controlled and 5 axis stepper motor can be controlled. 8. As PWM output, P1 can control the spindle speed regulator that is equipped with optical coupler. 9. Connection with 5V input drivers that has common cathode or anode is supported. ?
Feature 5 Axis MACH3 CNC:
All the way to the relay output port, control spindle switch. Output port P17 mouth.
All the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port.
Open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
P1 as PWM outputs can be controlled with optocoupler input spindle governor.
It can be accessed by a common cathode or common anode input level to 5V drive.
- Fully support of MACH3 and other computer software support for parallel port control.
- USB power supply and peripherals powered phase separation to protect computer security.
- Peripheral wide voltage input,12-24V, and anti-reverse function.
- All of the input signals, all the light lotus isolated, which can be accessed emergency stop on the knife, the limit to protect computer security.
- All the way to the relay output port, control spindle switch. Output port P17 mouth.
- All the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port.
- Open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
- P1 as PWM outputs can be controlled with optocoupler input spindle governor.
- It can be accessed by a common cathode or common anode input level to 5V drive.
Package included:
1 X Breakout Board 5 Axis
1 X USB cable
