5.8GHZ Microwave Radar Sensor Module in Pakistan

SKU: N/A

Specifications:

1. Working voltages are between 3.3-20VDC;
2. Standby quiescent current is <3mA;
3. Transmit power is <2mW;
4. The working environment temperature is almost -20 ~ +80 Centigrade;
5. it has  Repeat Trigger by default
6. The output signal is a TTL level. it will high->3.3V/ and it will Low->0V;
7. Detection angle is 360°(spherical) no dead ends;
8. Detection range is almost 3-8 meters, the default setting about 7 meters
9. The working delay is 1 second to hundreds of seconds, the default setting 30S.

550.00 520.00

Description

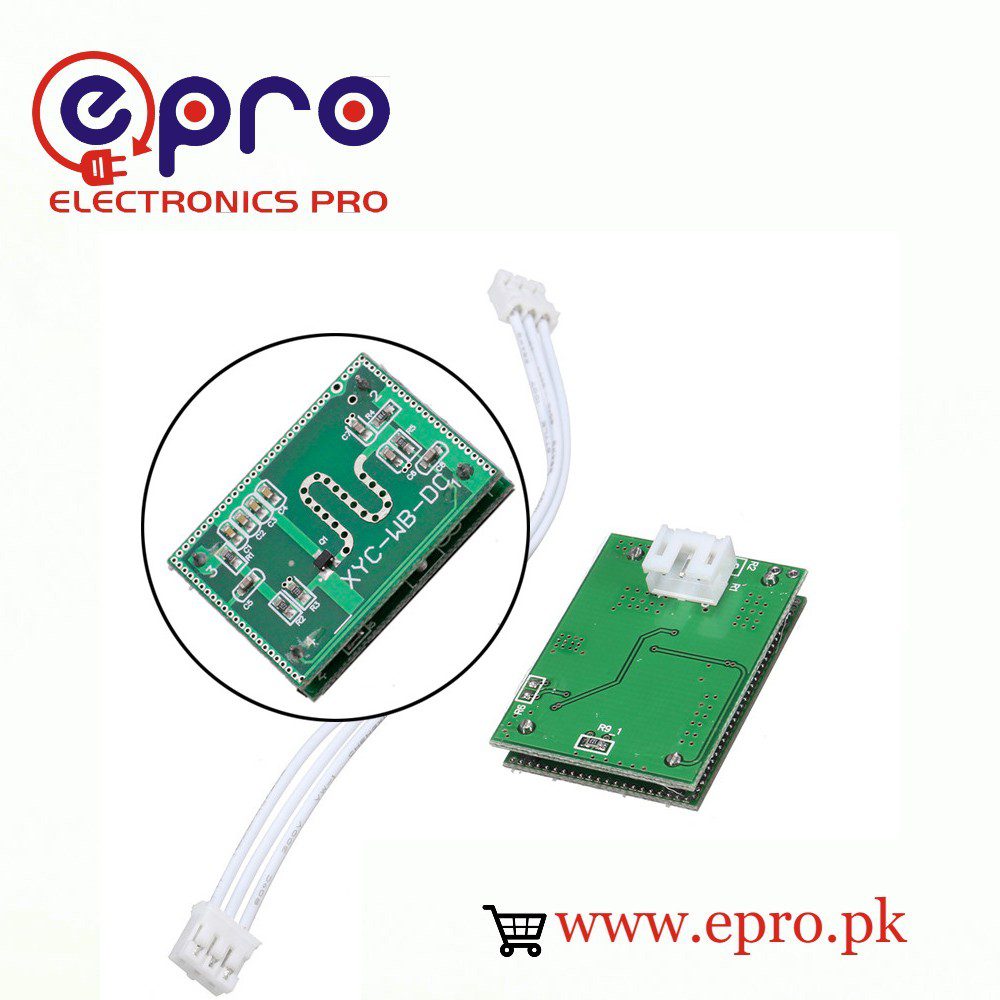

XYC-WB-DC 5.8GHZ Microwave Radar Sensor Module Smart Sensor Switch 6-9M For Home Control



The frequency of the Microwave radar motion sensor module is 5.8GHz. This microwave module will not affect any 5 GHz home WIFI devices. It can also be used as the alternative of PIR motion sensors. This sensor gives a wider angle field of view. In the shape, it is slimmer than the PIR sensor. This radar sensor consumes less power. This sensor uses less power so you can use this Microwave radar module over the PIR sensor. It operates on 5.8 GHz frequency so it will work through walls also. You have to attach a microcontroller with it to process the data. Hold that sensor as the board with the white connector facing away from you, the rightmost pin R1 is Analog output pin. The center pin is just for ground and the left most pin is for Vcc.  You can give 5V with Arduino.

Features:

1. This microwave sensor using a planar antenna and then receives for the echo.
2. The switch is the active sensor.
3. The sensors through high-frequency electromagnetic waves and this sensor receive them for the echo.

4. This sensor detects changes within for echo.
5. The sensors detect small changes in the detect range.
6. this sensor sends the signal to MCU and executes instructions.
7.this radar sensor signals are likely to be detected through the door, glass and thin walls.
8. this microwave radar module gets the best probe result if a person moving toward the sensor.
9. This module has a strong anti-jamming capability,  and almost without wind, heat and other environmental factors foreign interference.



Specifications:

1. Working voltages are between 3.3-20VDC;
2. Standby quiescent current is <3mA;
3. Transmit power is <2mW;
4. The working environment temperature is almost -20 ~ +80 Centigrade;
5. it has  Repeat Trigger by default
6. The output signal is a TTL level. it will high->3.3V/ and it will Low->0V;
7. Detection angle is 360°(spherical) no dead ends;
8. Detection range is almost 3-8 meters, the default setting about 7 meters
9. The working delay is 1 second to hundreds of seconds, the default setting 30S.



Application:

1. it used in Security purposes.
2. it is used in Intelligent Lighting
3.it used in Body sensors toys
4. it is also used in Industrial automation and control
5.it used in  Auto-sensing electrical equipment
6.it also used as  Battery-powered automatic control



Usage notice:

it is more responsive in open areas.

it should be placed away from the wall about 3 to 4 meters.





Package includes:

1 piece of  Microwave Radar Sensor Switch.
