Hydraulic Pressure Sensor HK1100C in Pakistan

Technical Parameters



  • Working Voltage is 5.0 VDC
  • Output Voltage is 0.5-4.5 VDC
  • Working Current of HK1100C is <= 10 mA
  • Working Pressure Range is almost 0-1.2 MPa
  • The Biggest Pressure is 1.5 MPa
  • Destroy Pressure is 3.0 MPa
  • Working TEMP Range is almost 0-85 Celsius Degree
  • Storage Temperature Range is 0-85 Celsius Degree
  • Measuring Error is approx + – 1.0% FSO
  • Temperature Range Error is + – 3.0% FSO
  • Response Time is <= 2.0 ms

2,200.00

Description

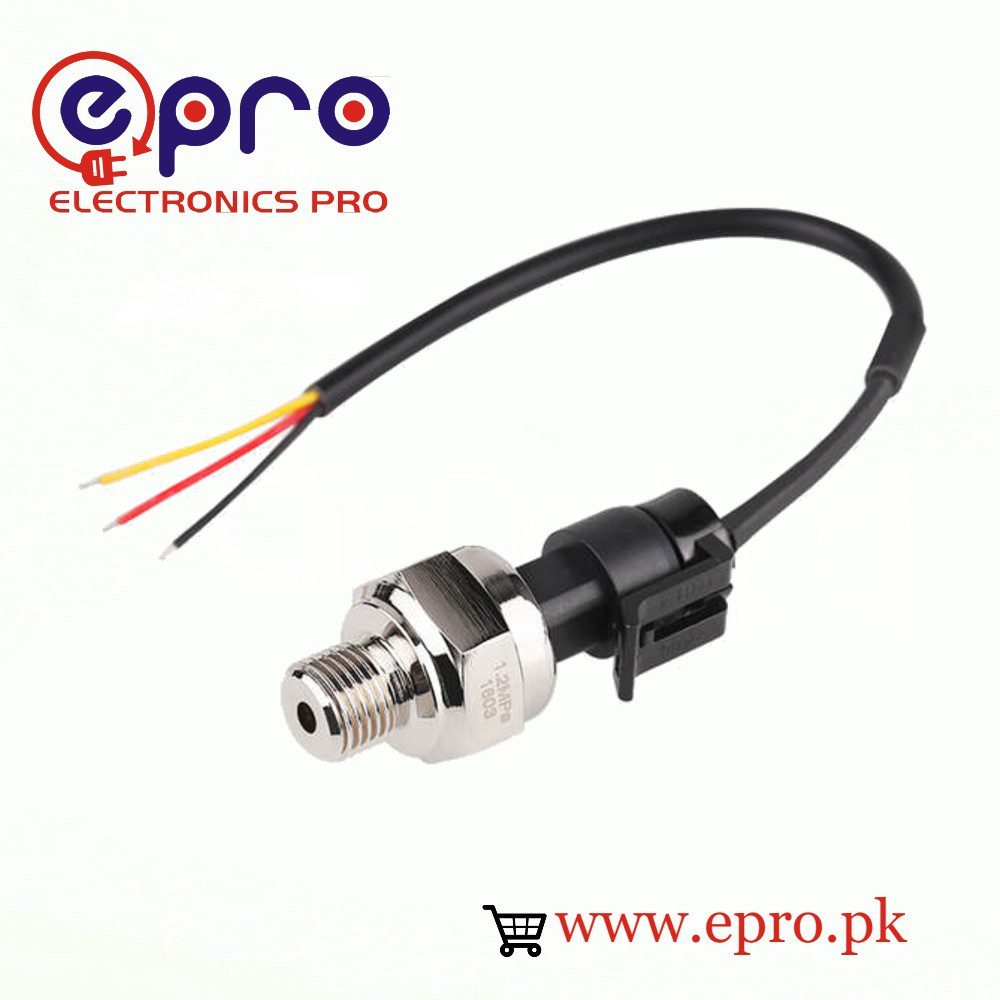

Description of Hydraulic Pressure Sensor HK1100C



Hydraulic Pressure Sensor working voltages are 5 volts. its output voltages are 0.5 to 4.5 VDC. its working current is less than equal to 10mA. its working range pressure is 0 to 1.2 MPa. the biggest pressure is 1.5 MPa. its destroy pressure is almost 3 MPa. its working temperature range is almost 0 to 85-celsius degree. its storage temperature range is 0 to 85-celsius degree. its temperature range error is approximately +-3%. and its response time is less than equal to 2ms.



Technical Parameters of HK1100C:



  • Working Voltage is 5.0 VDC
  • Output Voltage is 0.5-4.5 VDC
  • Working Current is <= 10 mA
  • Working Pressure Range is almost 0-1.2 MPa
  • The Biggest Pressure is 1.5 MPa
  • Destroy Pressure is 3.0 MPa
  • Working TEMP Range is almost 0-85 Celsius Degree
  • Storage Temperature Range is 0-85 Celsius Degree
  • Measuring Error is approximately + – 1.0% FSO
  • Temperature Range Error is + – 3.0% FSO
  • Response Time is <= 2.0 ms



Features of Hydraulic Pressure Sensor:



  1. it is suitable for wall hanging furnaces.
  2. it is also suitable for gas furnaces.
  3. it is also suitable for gas storage.
  4. it is good for all kinds of hydraulics, pneumatic pressure measurements
  5. it is also suitable for civil use batch products
  6. its static accuracy is + – 1.0% FS.
  7. its pressure range is 0-1.2 MPa.
  8. it has a wide range of temperature compensation.
  9. it is medium for non-corrosive gas, water, oil, etc.
  10. it is a stainless steel shell



Package included:

One Piece of Donut shape Mini USB Humidifier
