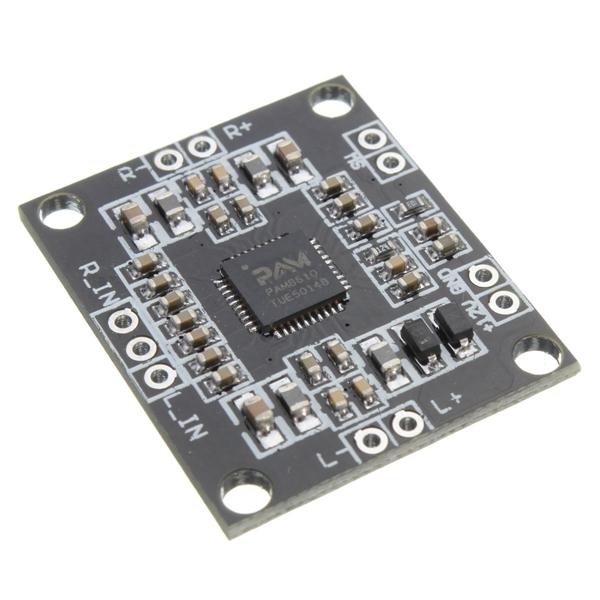

PAM8610 Digital Amplifier Board 2x15w to two D Class Stereo Channel Sound System in Pakistan

(1 customer review)

150.00

Description

Feature:

  • This switching function board, short SW, will turn off the power amplifier
  • Working mode: Class D (type of PWM modulation)
  • Chip Type: PAM8610
  • Power range: DC 6V-15V (self-protection)
  • Recommended Voltage: DC 12V (2A)
  • Output Power: 10Wx2 (8Ω) 15Wx2 (4Ω)
  • Frequency Response: 20HZ-15KHZ
  • Static current: 20MA (DC12V)
  • SNR: 90% recommended
  • Speakers: 10-100W
  • Input impedance: 15K
  • Output impedance: 4-8Ω
  • Harmonic distortion: <0.1%
  • Size: Approx. 3cm x 2.5cm / 1.19 “x 0.98”

Review (1)

5.0
1
0
0
0
0

Add a review

  1. Dr Zia ur Rehman

    Very good sound quality. Frankly way beyond my expectations. Great tiny module for a 10+10w amplifier sufficient and for a small to medium sizedd room. Just attach the mp3 kit speakers and the power supply and boom.
    As a side note impressed by the staff of the electronics pro. Very humble and supportive. I am just an enthusiastic in electronics (an eye doctor actually) but even then they helped me finding the correct product as per my requirements. Highly recommended.
