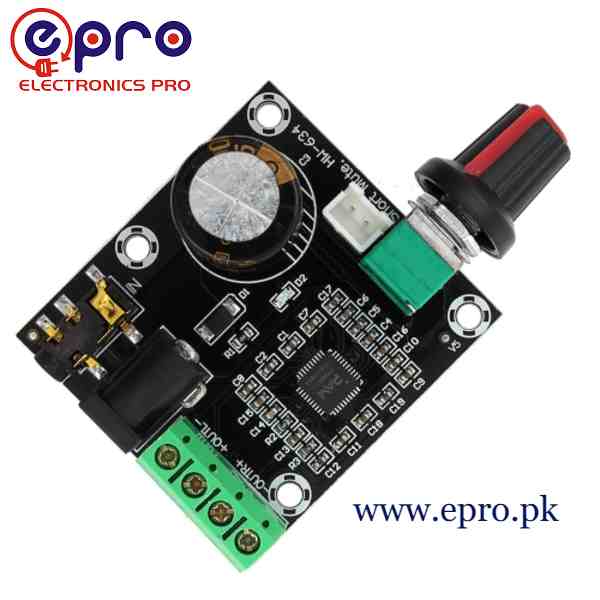

PAM8610 With Dimmer 15W Two Channel Stereo Class D Digital Amplifier Board in Pakistan

  • Its supply voltage is 7 to 15V DC.
  • Its output power is 10W.
  • Its efficiency is 90%.
  • 4 microamp is its shutdown current.
  • 20 milliamp is its quiescent current.

390.00

Description

PAM8610 with Volume 12V Dual-channel Digital Amplifier Board Stereo audio amplifier Board 15W x 2 in Pakistan





PAM8610 With Dimmer 12V dual channel digital amplifier board is a new and efficient digital power amplifier. The PAM8610 amplifier board is a 15W and class-D audio amplifier. This amplifier offers low THD N and it is allowing it to achieve high-quality sound reproduction. This amplifier board has a new filterless architecture and this architecture allows the device to drive the speaker directly. There is no requiring no low-pass output filters. This 15W amplifier that’s why save the system cost and PCB area. If we used the same numbers of external components then the efficiency of the PAM8610 is much better than class-AB. This device is ideal for portable applications. Get all types of amplifier boards, Sensors, and Modules at epro.pk.



Specifications of PAM8610 Digital Amplifier Board 15W x 2:





  • Its supply voltage is 7 to 15V DC.
  • Its output power is 10W.
  • Its efficiency is 90%.
  • 4 microamp is its shutdown current.
  • 20 milliamp is its quiescent current.
  • It has SNR 86%.
  • 5W/ 1KHz / 8 —– 0.1% is its total harmonic distortion.
  • Its frequency range is 20Hz to 20 kHz.
  • Its input impedance is 15K.
  • Its output impedance is 4 to 8.
  • Its size is 30 x 25 x 2.5 mm.



Instructions for Use This PAM8610 with Volume 12V Dual-channel Digital Amplifier Board:



  1. Its limit of the power supply voltage is 16.5V. if the user uses more voltages than this limit, it will over-heated.
  2. 12V and 3A power supply filter is better for power supply.
  3. For this device, 4 to 8 inches stereo speakers recommended.
  4. Be careful and don’t short- circuit the audio output to each other.
  5. Please check the wiring first and then provide the electricity to it.





Package Included:



 One Piece of PAM8610 with volume 12V dual-channel digital amplifier board stereo audio amplifier board
