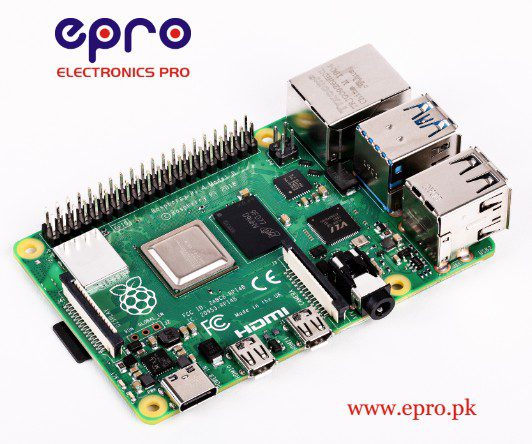

Raspberry Pi 4 Model B 4GB RAM Development Board

Description

What’s new with Raspberry Pi 4:

• A 1.5GHz quad-core 64-bit ARM Cortex-A72 CPU (~3× performance)
• 1GB, 2GB, or 4GB of LPDDR4 SDRAM
• Full-throughput Gigabit Ethernet
• Dual-band 802.11ac wireless networking
• Bluetooth 5.0
• Two USB 3.0 and two USB 2.0 ports
• Dual monitor support, at resolutions up to 4K
• VideoCore VI graphics, supporting OpenGL ES 3.x
• 4Kp60 hardware decode of HEVC video
• Complete compatibility with earlier Raspberry Pi products

At first glance, the Raspberry Pi 4 board looks very similar to previous products, all the way back to 2014’s Raspberry Pi 1B+. Raspberry Pi Foundation worked hard to keep it this way, but for the first time it has made a small number of essential tweaks to the form factor to accommodate new features.

Power:

Pi 4 has moved from USB micro-B to USB-C for our power connector. This supports an extra 500mA of current, ensuring we have a full 1.2A for downstream USB devices, even under heavy CPU load.

Video:

To accommodate dual display output within the existing board footprint, Pi 4 has replaced the type-A (full-size) HDMI connector with a pair of type-D (micro) HDMI connectors.

Ethernet and USB:

Gigabit Ethernet magjack has moved to the top right of the board, from the bottom right, greatly simplifying PCB routing. The 4-pin Power-over-Ethernet (PoE) connector remains in the same location, so Raspberry Pi 4 remains compatible with the PoE HAT.

The Ethernet controller on the main SoC is connected to an external Broadcom PHY over a dedicated RGMII link, providing full throughput. USB is provided via an external VLI controller, connected over a single PCI Express Gen 2 lane, and providing a total of 4Gbps of bandwidth, shared between the four ports.

All three connectors on the right-hand side of the board overhang the edge by an additional millimetre, with the aim of simplifying case design. In all other respects, the connector and mounting hole layout remains the same, ensuring compatibility with existing HATs and other accessories.
