Sn74ls86n 74hs86 Sn74ls 7486n 7486 Quad Exclusive-or Gate

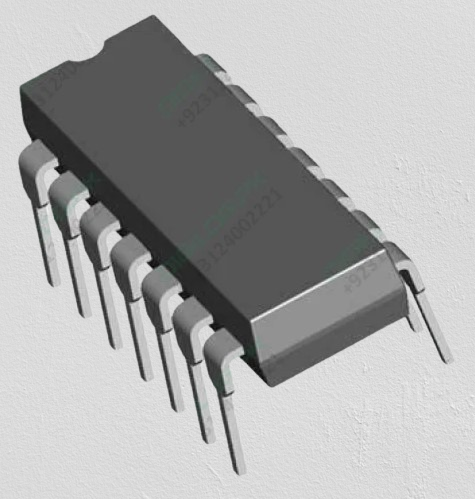

74HC86 Quad EXCLUSIVE-OR Gate IC

The 74HC86 is a Quad EXCLUSIVE-OR Gate IC featuring four independent 2-input exclusive-OR (XOR) gates. It is part of the 74HC series and utilizes high-speed CMOS technology to provide fast switching performance, low power consumption, and high noise immunity. This IC is designed to operate at similar speeds to LS-TTL gates, making it an ideal choice for applications requiring high-speed digital logic with minimal power usage.

Key Features:

• Four Independent XOR Gates: The IC contains four individual XOR gates, each with two inputs and one output, providing flexibility for multiple logic operations.
• Fast Switching Times: Designed to operate at high speeds, making it suitable for applications that require quick logic operations.
• Operating Temperature: Functional in a wide range of operating conditions with an operating temperature range up to 70°C.
• High-Speed CMOS Technology: Utilizes CMOS technology to achieve high-speed operation, while maintaining low power consumption and high noise immunity.
• Standard Pin Configuration: The IC follows a standard pin arrangement for compatibility with various logic systems.
• Low Power Consumption: Efficient and energy-saving compared to traditional TTL logic gates, making it ideal for battery-operated devices.
• High Fanout Capability: Capable of driving up to 10 LS-TTL loads due to buffered outputs.
• Static Discharge Protection: All inputs are protected from static discharge through internal diode clamps to Vcc and ground, ensuring the durability and reliability of the IC.

General Description:

The 74HC86 XOR gates are designed to perform the EXCLUSIVE-OR function, which outputs a HIGH (1) when the number of HIGH inputs is odd (1 or 2) and a LOW (0) when the inputs are both LOW or both HIGH. The gates use advanced silicon-gate CMOS technology for excellent speed and power efficiency, making them highly reliable for various digital circuits and systems. The IC is fully compatible with the 74LS logic family and can be easily used in TTL-based systems.

Applications:

• Digital Signal Processing (DSP): Useful in circuits where binary operations are needed, such as in error detection and correction systems.
• Arithmetic Logic Units (ALUs): Commonly used in ALUs of processors for performing addition, subtraction, and other binary operations.
• Parity Checkers: Suitable for generating and checking parity bits in communication and storage systems.
• Computers and Peripherals: Can be used in general-purpose logic circuits in computing devices.

Package Includes:

• 1 x 74HC86 Quad EXCLUSIVE-OR Gate IC (also available as SN74LS86N, 74LS86, 7486N, or 7486)

This 74HC86 Quad EXCLUSIVE-OR Gate IC is an excellent choice for applications that require efficient and reliable logic gates with fast switching times, low power consumption, and robust noise immunity. Its versatile features make it a popular component in many digital systems.
