STM32 Nucleo-144 Development Board – Discover the Power of STM32F767ZI MCU

Are you looking for a powerful development board that offers a wide range of features and capabilities? Look no further than the STM32 Nucleo-144 Development Board. With its STM32F767ZI microcontroller unit (MCU), this board is designed to empower developers and enthusiasts to bring their ideas to life. In this article, we will explore the features, benefits, and applications of the STM32 Nucleo-144 Development Board, highlighting the power and versatility of the STM32F767ZI MCU.

Table of Contents

1. Introduction to the STM32 Nucleo-144 Development Board
2. Unleashing the Power of the STM32F767ZI MCU
3. Features and Specifications
4. Versatility for Various Applications
5. Getting Started with the STM32 Nucleo-144 Development Board
6. Software Development with STM32CubeIDE
7. Expansion Possibilities with Arduino and ST Morpho Compatibility
8. Community Support and Resources
9. Conclusion
10. FAQs

Introduction to the STM32 Nucleo-144 Development Board

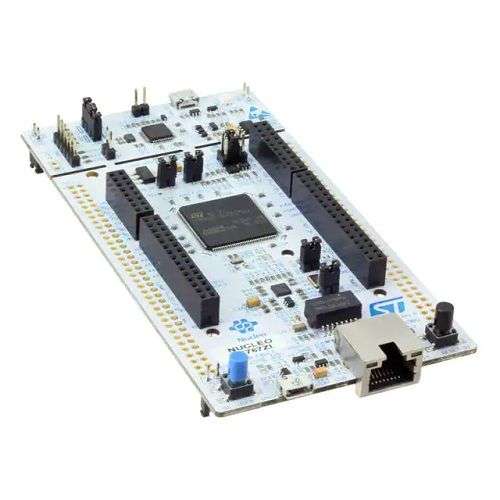

The STM32 Nucleo-144 Development Board is a highly flexible and affordable platform for rapid prototyping. It features an STM32F767ZI microcontroller, which is based on the powerful Arm Cortex-M7 architecture. This board provides an extensive range of peripherals and connectivity options, making it suitable for a wide variety of applications.

Unleashing the Power of the STM32F767ZI MCU

The STM32F767ZI MCU is the heart of the Nucleo-144 Development Board, delivering outstanding performance and efficiency. With its 32-bit RISC core operating at up to 216 MHz, this MCU offers a wealth of computational power for demanding applications. It also includes a floating-point unit (FPU), enabling high-precision mathematical operations.

The STM32F767ZI MCU features a generous 2 MB Flash memory, ensuring ample space for your firmware and applications. It also provides 512 KB of RAM for data storage and temporary variables, allowing for efficient program execution. With its advanced set of peripherals, including GPIOs, UART, SPI, I2C, USB, and more, this MCU offers extensive connectivity options.

Features and Specifications

The STM32 Nucleo-144 Development Board boasts an impressive array of features and specifications. Here are some highlights:

• STM32F767ZI MCU with Arm Cortex-M7 core
• Clock speed of up to 216 MHz
• 2 MB Flash memory and 512 KB RAM
• Multiple communication interfaces (UART, SPI, I2C, USB, etc.)
• GPIO pins for flexible digital I/O configurations
• On-board ST-LINK debugger/programmer
• Integrated voltage regulator for stable operation
• Arduino and ST Morpho compatibility for expanded functionality

Versatility for Various Applications

Thanks to its powerful STM32F767ZI MCU and comprehensive set of features, the STM32 Nucleo-144 Development Board is suitable for a wide range of applications. Whether you’re working on IoT projects, robotics, industrial automation, or consumer electronics, this development board can meet your needs. Its flexibility allows for prototyping, development, and even deployment in the final product.

Getting Started with the STM32 Nucleo-144 Development Board

To get started with the STM32 Nucleo-144 Development Board, you can follow these simple steps:

1. Connect the board to your computer using a USB cable.
2. Install the necessary drivers if prompted by your operating system.
3. Download and install the STM32CubeIDE development environment.
4. Explore the available examples and templates to kickstart your project.
5. Write your code, compile it, and upload it to the board using the integrated ST-LINK debugger/programmer.
6. Connect additional hardware components or sensors to expand the functionality of your project.

Software Development with STM32CubeIDE

STM32CubeIDE is a feature-rich integrated development environment (IDE) specifically designed for STM32 microcontrollers. It provides a comprehensive set of tools, including a code editor, compiler, debugger, and project management features. With STM32CubeIDE, you can write, compile, and debug your code seamlessly, making the development process efficient and productive.

Expansion Possibilities with Arduino and ST Morpho Compatibility

The STM32 Nucleo-144 Development Board offers compatibility with both Arduino and ST Morpho, providing extensive expansion possibilities. With Arduino compatibility, you can leverage the vast ecosystem of Arduino shields and libraries to add functionalities such as wireless communication, motor control, or sensor integration. ST Morpho compatibility opens up access to additional STM32 expansion boards, allowing for even more diverse applications.

Community Support and Resources

The STM32 Nucleo-144 Development Board benefits from a vibrant and supportive community. As an STM32 product, it has a large user base and an active online community that shares knowledge, resources, and project ideas. You can find tutorials, example projects, and code snippets on the STMicroelectronics website and various online forums. Engaging with the community can help you overcome challenges, gain insights, and accelerate your development process.

Conclusion

The STM32 Nucleo-144 Development Board, powered by the STM32F767ZI MCU, offers a powerful and flexible platform for your embedded projects. Its combination of high-performance hardware, extensive connectivity options, and compatibility with Arduino and ST Morpho expansion boards make it a versatile choice for a wide range of applications. Whether you’re a professional developer or an enthusiast, this development board empowers you to bring your ideas to life with ease.

FAQs

1. Is the STM32 Nucleo-144 Development Board suitable for beginners? Absolutely! The board provides a user-friendly environment and comprehensive documentation, making it accessible to beginners.
2. Can I program the STM32 Nucleo-144 Development Board in C/C++? Yes, the board supports programming in C/C++ using the STM32CubeIDE development environment.
3. What programming languages are supported by the STM32F767ZI MCU? The STM32F767ZI MCU supports programming in C/C++ using various development environments, including STM32CubeIDE.
4. Can I connect sensors and modules to the STM32 Nucleo-144 Development Board? Yes, the board offers multiple communication interfaces and GPIO pins, allowing you to connect a wide range of sensors and modules.
5. Where can I find technical support and documentation for the STM32 Nucleo-144 Development Board? You can find technical support, documentation, and additional resources on the STMicroelectronics website and community forums.
