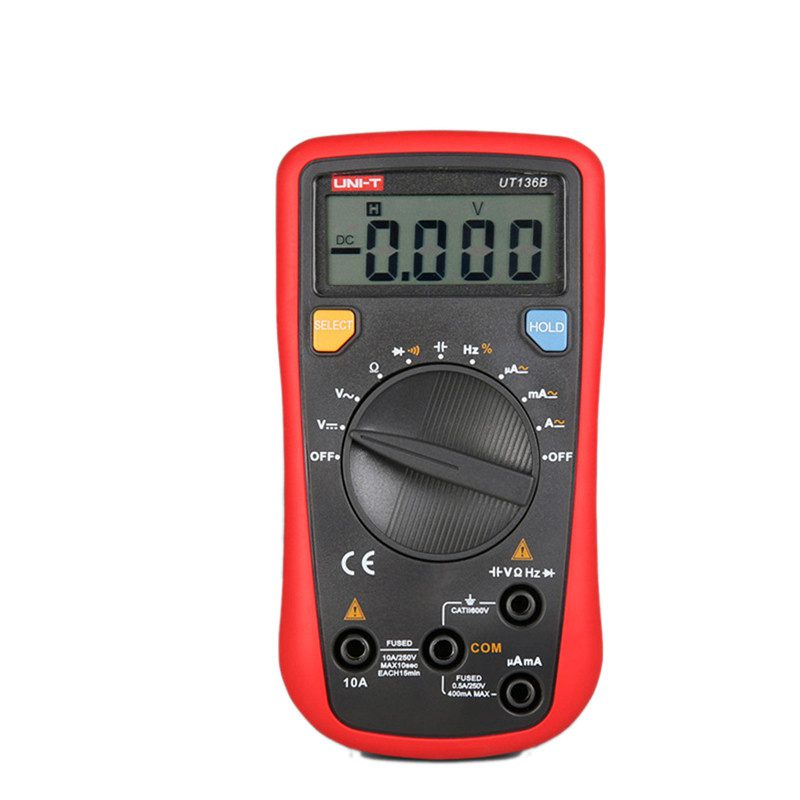

It is used to measure AC/DC voltage, capasitance, Conectivity,Resistance. It is more reliable, easy to use.This new electronics kit from UNI-T combines the new UT 136A TRMS digital multimeter with the UT 203 AC/DC digital current clamp. It helps with troubleshooting and offers considerable savings on the respective individual prices.

Specifications:

1. DC voltage: 400mV/4V/40V/400V/500V ±(0.8%+1)Diode Testing: √
   Continuity Buzzer: √
   Auto Power Off: √
   Low Battery Display: √
   Input Impedance for DC Voltage Measure: √
   Auto Data Hold: √
   Max Display: 3999
2. AC voltage: 400mV/4V/40V/400V/500V ±(1.2%+3)
3. DC current: 400uA/4mA/40mA/400mA/4A/10A ±(1.0%+2)
4. AC Current: 400uA/4mA/40mA/400mA/4A/10A ±(1.2%+5)
5. Resistance: 400/4000/40k/400k/4M/40M ohm ±(1.0%+2)
6. Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+3)
7. Duty Cycle: 0.1%~99.9%
