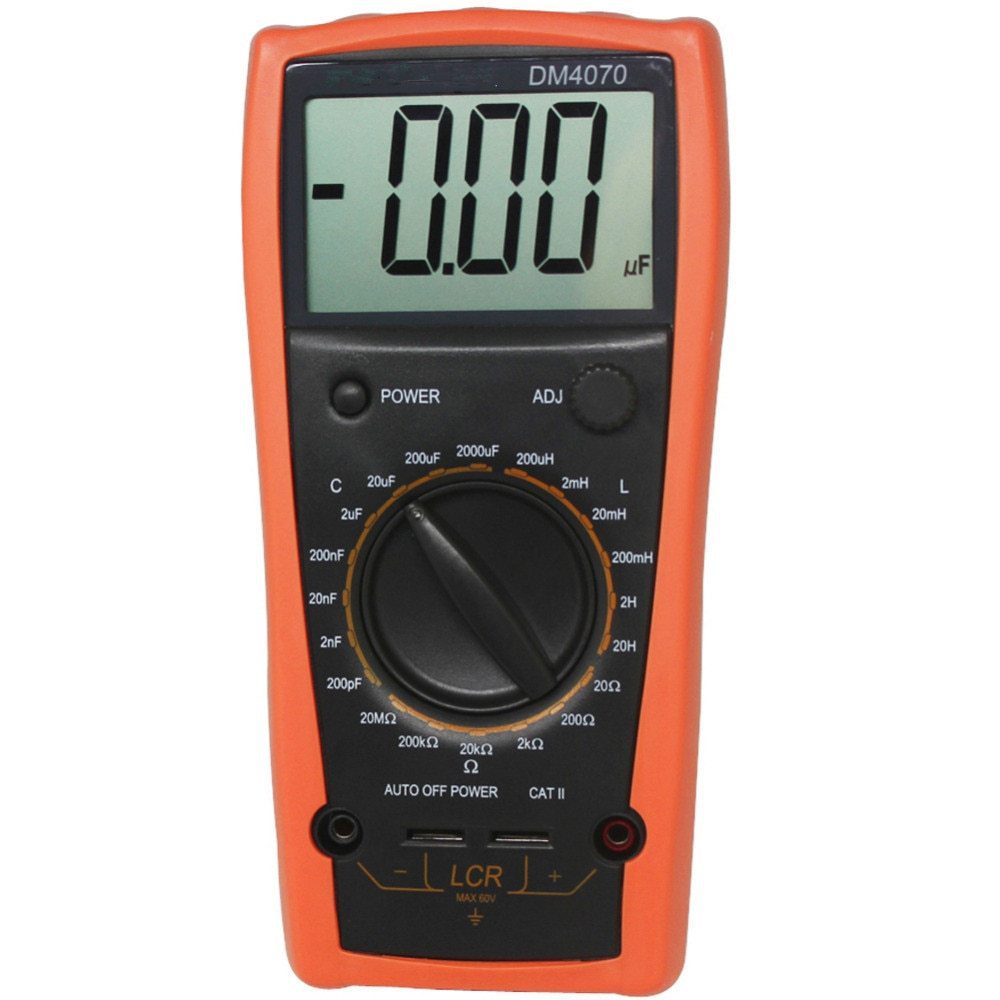

DM4070 Digital LCR Meter 3 1/2 20H 2000uF 20Mohm self discharge resistance inductance capacitance meter tester

SKU: N/A

5,500.00

Out of stock

Description

General characteristics

Display: LCD Max. display: 1999

Inductance measurement: 0.1uH~20H

Capacitance measurement: 0.1pF~2000uF

Resistance measurement: 0.01Ω~20MΩ

Zero adjustment: To obtain accurate measuring values, perform zero adjustment before measuring capacitance under 20nF

Over range: display “1”

Low battery indicator: “” symbol appears

Sampling rate: 0-5 seconds

Working temperature: 0~40°

Relative humidity: less than 80%

Meter size: 185mm×93mm×35mm (length × width × height)

Weight: Approx.290g(including 9V battery)

Power source: one 9V battery (6F22 or equivalent)

Battery life: alkaline battery lasts 150 hours

Standard accessories: test leads, operation manual



Special FunctionVC6013/VC6243+/DM4070
Automatic dischargeYes
Data HoldYes
Auto power offAuto off After 30s when didn’t measuring
BacklightDelay about 10s
Function protectionYes
Shockproof protectionYes
Operation wayManual range
Sampling rate3 times/s
Max Display1999
LCD size65*41mm
Battery9V(6F22) Not include Battery







Basic FunctionMeasuring rangeAccuracy
VC6013VC6243+DM4070
Resistance20Ω/200Ω/2KΩ/20KΩ/200KΩ/20MΩ±(0.8%+2)
Capacitance200pF/2nF/20nF/200nF/2uF/20uF/ 200uF/ 2000uF/2mF±(0.5%+1)
200pF/2nF/20nF/200nF/2uF/20uF/ 200uF/ 2000uF±(2.0%+5)
2nF/20nF/200nF/2uF/20uF/2000uF±(2.0%+5)
Inductance200uH/2mH/20mH/200mH/2H/20H±(2.0%+5)
2mH/20mH/200mH/2H/20H±(2.0%+5)
