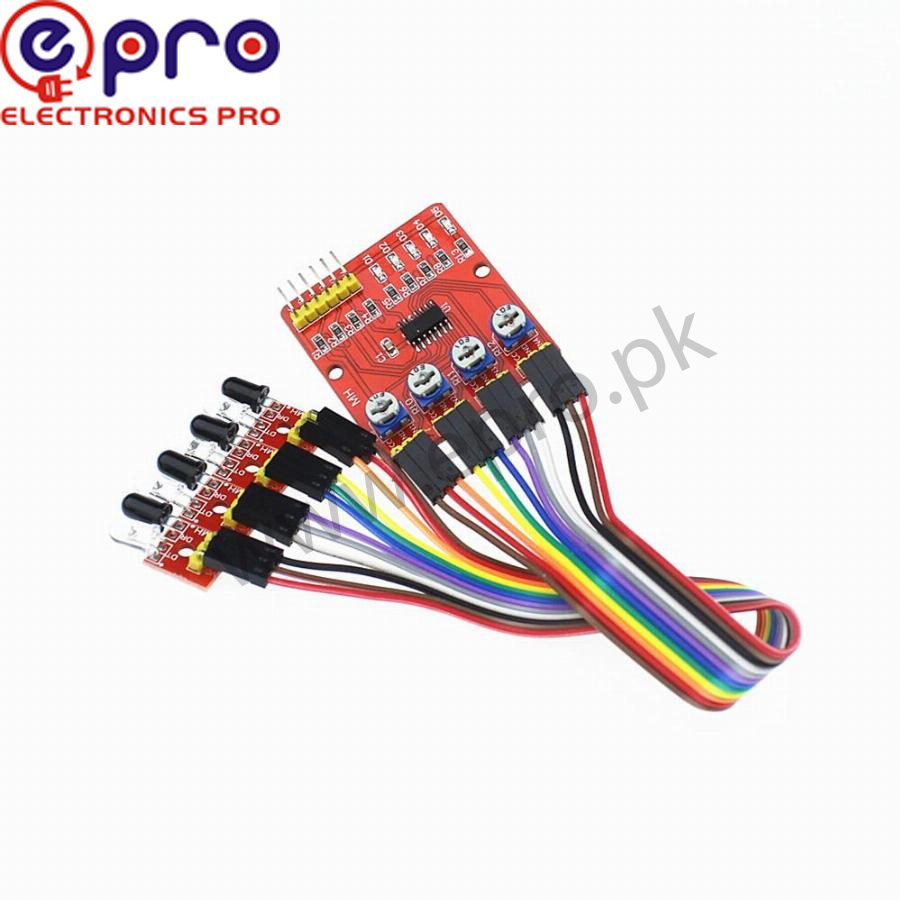

4-Way Infrared Tracking IR Obstacle Line Following Tracking Module

4-Way Infrared Tracking IR Obstacle Line Following Tracking Module

The intelligent car or robot line (including black and white lines), walked along the black line path, also known as tracing.
The intelligent car cliff avoidance, prevent fall off.
The smart car obstacle avoidance
Can be used in other automatic photoelectric reflex applicatio

Specification:

Working voltage: 3.3 V to 5 V DC
The working current, try to choose more than 1 a power supply
The working temperature: – 10 °C to + 50 °C
Install the aperture: M3 screws
The detection distance: 1 mm and 60 cm adjustable, the closer distance performance more stable, white reflection furthest distance.
Control of plate size: 44 mm x 30 mm x 8.5 mm (length x width x height)
Small board sensor (obstacle avoidance) forward 11 mm x 25 mm x 10 mm (length x width x height)
Small plate sensor (tracking) 20 mm * 11 mm * 15 mm (length x width x height)

Module connection details:

The DO1-1 road TTL level output
DO2-2 road TTL level output
DO3-3 road TTL level output
DO4-4 road TTL level output
GND – connect power anode
VCC – positive

1X 4-Way Infrared Tracking IR Obstacle Line Following Tracking Module
