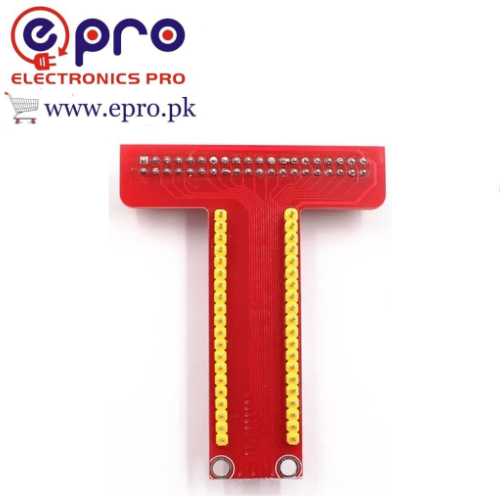

Raspberry Pi 40-pin GPIO breakout for prototyping
This extension board makes connections from a suitable Raspberry Pi 40-pin header more accessible for prototyping. Clearly labelled GPIO connections help organise wiring for compatible sensors, displays, switches and other circuit components.
It breaks out existing header connections; it does not create additional independent processor GPIO pins. Voltage conversion, buffering or electrical protection should not be assumed unless the supplied board explicitly provides them.
Check model and header compatibility
The listing describes use with 40-pin Raspberry Pi models including Pi 3 Model B, Pi 4 Model B and suitable Zero models. Confirm the exact board’s physical fit and pin mapping. Some Zero variants need a header fitted before an extension can be connected.
Do not assume compatibility with the differently arranged Raspberry Pi Pico headers, older 26-pin models or every case and heatsink. Check connector clearance and any cable orientation before assembly.
Connect the header safely
- Disconnect power before fitting or changing wiring.
- Identify physical pin 1 and align the connection correctly.
- Distinguish physical pin numbers from BCM GPIO numbers.
- Check power, ground and signal labels against the Raspberry Pi pinout.
- Use suitable drivers or level shifting when a peripheral requires them.
Raspberry Pi GPIO signal pins use 3.3V logic and are not 5V tolerant. The header also carries separate 5V power pins; their presence does not make a GPIO input safe for a 5V signal. Do not drive motors or high-current loads directly from GPIO pins.
Confirm whether a ribbon cable, breadboard or other accessories are supplied. A Raspberry Pi computer is not established as included. Browse Raspberry Pi accessories at EPRO for other project components.
Frequently asked questions
Does it add more GPIO pins?
No. It provides access to the existing header connections.
Does it convert 5V signals to 3.3V?
Level shifting is not established for this board. Use appropriate conversion where needed.
Is a ribbon cable included?
Package contents need confirmation before ordering.
