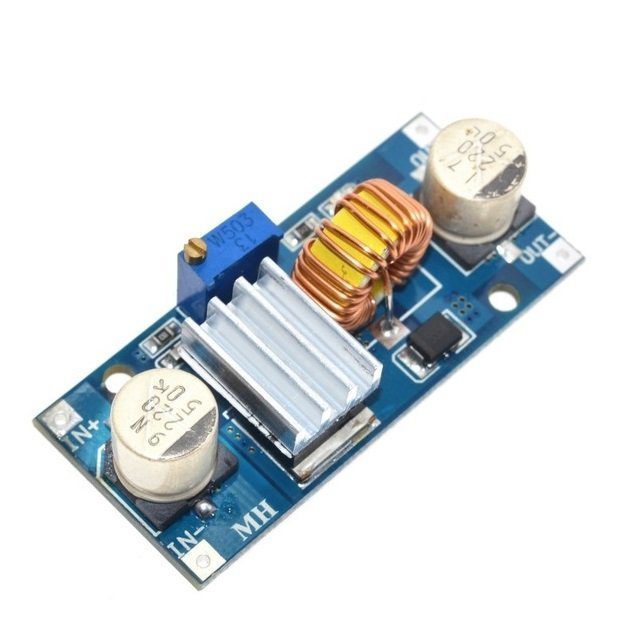

Buck Converter 5A DC to DC Power Supply XL4015 in Pakistan
The isolation step-down module (BUCK)
-
4-38 v input voltage: (please try not to exceed 38 v input)
-
Output voltage: 1.25-32 v continuous
-
adjustable Output current: 0-5 A, it is recommended to use in 4.5 A
-
Output power: it is recommended that use within the 75 w, more than 50 w please add heat sink.
-
Working temperature: – 40 ~ + 85 degrees Buck Converter
-
Working frequency: 180 KHz
-
Conversion efficiency: up to 96% (efficiency and the input, output voltage, current and pressure difference)
-
Load regulation: S (I) 0.8% or less Voltage regulation: S (u) of 0.8% or less
-
Power light: yes Short circuit protection: (limit current 8 a)
-
Over temperature protection: (over temperature after automatic shut off output)
-
Input reverse connect protection: no, (such as the need to please in the input string into the high current diode)
-
Installation method: 2 3 mm wire the self-contained
-
Connection mode: welding, V – IN for the input, V – OUT for the output
