DC to DC step-up converter module is a non-isolated step-up voltage converter. this XL6009 DC to DC Boost Converter has features of adjustable output voltage and also has the feature of high efficiency. this XL6009 module has a second-generation XL6009E1 core chip of high-frequency switching technology. XL6009 boosts the module at a lower cost. it has high-frequency switching technology than the first generation LM2577. it gives superior performance. it also contains 4A high-efficiency MOSFET switches. due to the MOSFET switches, it provides a conversion efficiency of up to 94%. Get all types of Sensors, Modules, and Converters at epro.pk.

Pin Connection of XL6009 Step-up Power Module DC-DC Boost Converter in Pakistan:

• it has the property of an unfenced step-up.
• its input voltages are 3 to 32 volts.
• its continuous adjustable output voltages range is 5V – 35V.
• its maximum input current is 4A.
• its maximum no-load current is 18mA.

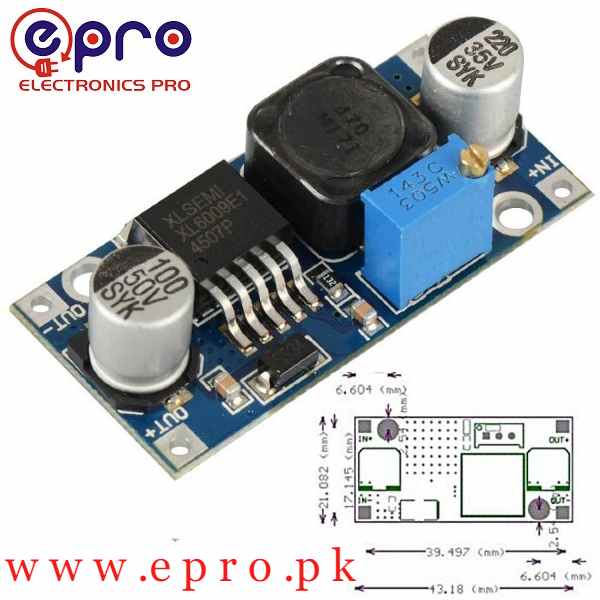

• 44.7 x 21.7 mm is module size.
• IN+ is positive input.
• IN- is negative input.
• OUT+ is the positive output
• OUT- is negative output.
• its conversion efficiency is <94%. please remember to lower the pressure difference, the greater the efficiency.
• 50mV is its output ripple.
• its load regulation value is +- 0.5%.
• its voltage regulation value is +- 0.5%.
• 400KHz is its switching frequency.
• -40 to 85-degree centigrade is its operating temperature.

Package Included:

• One Piece of XL6009 DC to DC Step-up Converter.
