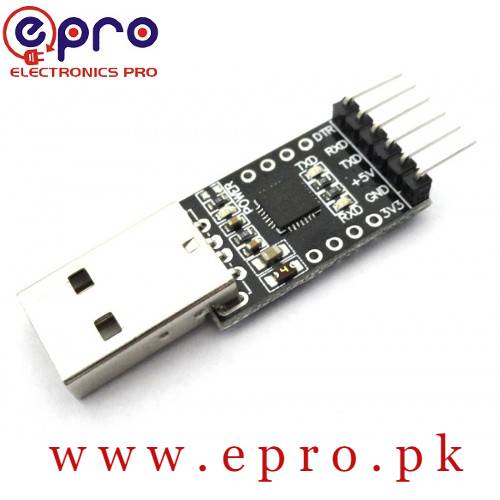

CP2102 USB 2.0 to TTL Module in Pakistan

SKU: N/A
  • Its temperature range is -40 to +85.
  • Its size is 42mm x 15mm.
  • Its weight is 4g.
  • it contains an embedded USB transceiver.
  • it does not have an external circuit device.
  • it has a clock circuit and no external circuit device.
  • it contains a power-on reset circuit.

190.00

Description

Product Description of USB 2.0 to TTL Module



CP2102 chip is a single-chip USB to UART Bridge IC. This module required minimal external components. Get all types of sensors, USB modules, Drone Frames, and much more from Pakistan’s best online store epro.pk.

Features of USB 2.0 to TTL Module:



  • Its USB specification is 2.0 compliant and its speed is 12 Mbps.
  • Its standard USB type is a male and TTL 6 pin connector.
  • 6 pins are consisting of 3.3V, RST, TXD, RXD, GND, and 5V.
  • Its baud rate is 300 bps to 1.5 Mbps.
  • It is 640 bytes transmit buffer.
  • It has an event character support line break transmission.
  • It is USB suspend states supported via suspend pins.
  • Its temperature range is -40 to +85.
  • Its size is 42mm x 15mm.
  • Its weight is 4g.
  • it contains an embedded USB transceiver.
  • it does not have an external circuit device.
  • it has a clock circuit and no external circuit device.
  • it contains a power-on reset circuit.
  • it has an on-chip voltage regulator within the 3.3V output.
  • it meets the requirements of the USB2.0 specification.
  • it supports 8 data bits data format.
  • it has 1 stop bit and a parity bit.
  • It has connotation 512 byte receive buffer and 512 bytes transmit buffer.
  • it supports hardware or X-ON / X-OFF handshake.



Pin Configuration of USB 2.0 to TTL Module:



1.TX

2.RX

3. RST

4.GND

5.3.3V

6. 5V



  • TX is a Transmit pin of the microcontroller. RX pin performs the transmission process of CP2102.
  • RX pin works as a receive pin of the microcontroller. TX pin of the microcontroller is just a data receiving the pin.
  • The RST pin is normally unconnected. It is a reset pin for CP2102. This pin initiates a system to reset by driving this pin low for at least 15 us.
  • GND pin is ground. It should be common to microcontroller ground.
  • 3.3V is optional output to power and it is an external circuit up to 50mA.
  • 5V is optional to power. And its external circuit up to 100mA.



Specifications of USB to Serial USB to UART TTL Serial CP2102 Module:



  • its PCB color is Black.
  • its weight is 4g.
  • CP2102 chip is used in this module.
  • if you face the accidental short-circuit then it will protect your device and computer USB port to download.
  • it has a power indicator. data reception LED, and data transmission indicator.
  • it has 3.3V and 5V power output.
  • it has all useful lead pins.
  • it is compatible with Windows98, Me, Windows2000, Windows7, WindowsXP, MAC OS-9, MAC OS, X Windows CE, Linux 2.4 or later.



Package included:
One Piece of CP2102 6 Pin Module USB2.0 to TTL Module Serial Converter
