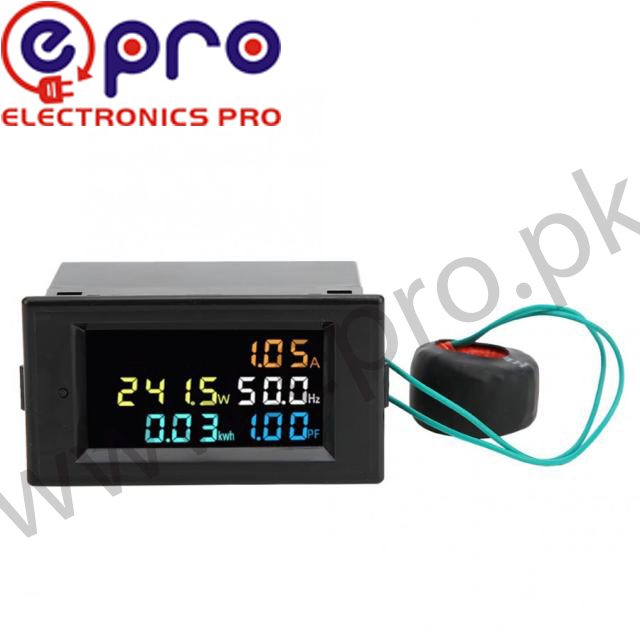

D69 AC80-300V 100A Voltage Current Power Meter Frequency Factor Detector AC 80-300V

1 AC voltage 80V-300V
2. Alternating current 0-100A
3. Active power 0-45000W
4. Electric Power 0.000-99999kwh
5. power factor 0.00-1.00PF
6. Frequency 45-65Hz

Parameters:
1. Accuracy: 1% 2 words
AC Voltage: AC 80.0-300.0V / 300.0-450.0V (You need to select the appropriate type of
Meter when ordering)
Alternating current: ac 0-99.99A, the minimum resolution is 0.01a
Alternating current: AC 0-40.00A, the minimum resolution is 0.01A
Power frequency: 45.0Hz-65.0Hz
Power factor: 0.00-1.00PF
Active power: 0-45000W when the active power between 0 and 9999.9W, the display accuracy is 0.1W
Electric Power: 0-9 99999kwh, when the electric power between 0 and 999.99kwh, the display precision is 0.01kwh, when between 10000.0-9999.9kwh, the display precision is 0.1kwh, when between 10000.0 and 9999kwh, the accuray display is 1kWh.
3. Speed: 2 times per second

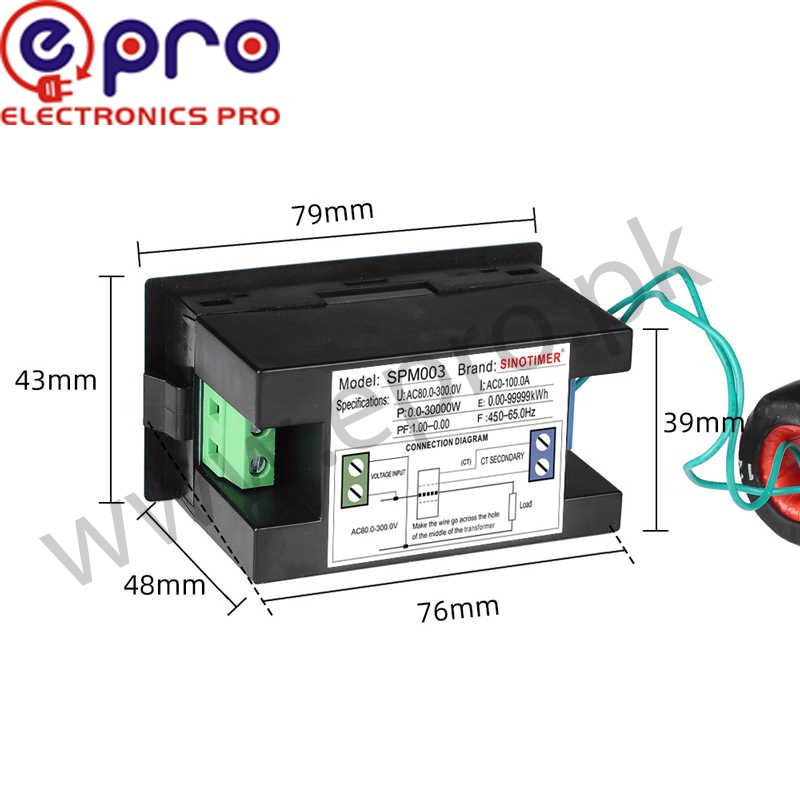

4. Size: 79 * 43 * 48mm
5. Installation size: 76 * 39mm
6. Automatic saving: when power off, it will save electric power. The electrical energy saved will accumulate the next time the meter is turned on the next time.

Application:
1. According to the connection chart, connect the green wire from the secondary current transformer to the meter terminal and run the measurement circuit wire through the hole in the current transformer.
2. Supplies power and begins to measure and display results.
3. Press the button to last 5 seconds, the electric power will be zero.

Note:
1. The meter will be destroyed when you make wrong connection method with voltage
2.The meter can only use to measure 50Hz AC city electricity, it will break when used for input (green terminal) and secondary current transformer (blue terminal). Measure square wave, inverter output, and correction sine wave.
