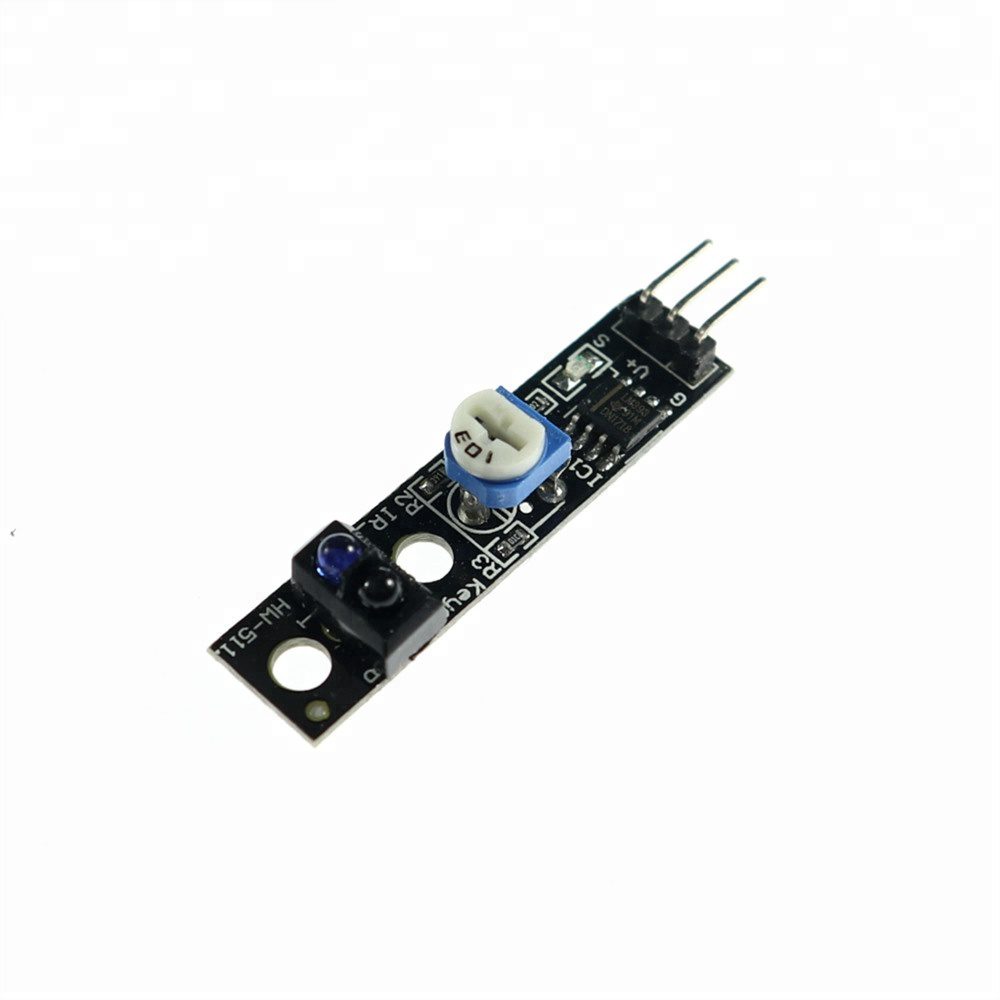

KY-033 IR Sensor Module/Tracking sensor/Infrared Tracking Sensor Module

180

Add 10,000 to cart and get free shipping!

Out of stock

Compare
Description

Technical data / Short description

The sensor detects if a light reflecting or absorbing area is in front of it. It shows which of the 2 areas it is via digital output, as you can see in the picture below.
The Sensitivity (minimum range) of the sensor can be adjusted by the controller.

This behavior can be used to automatically follow a line with a robot.

Feature:
1. Use infrared reflection sensor TCRT5000
Detection distance: 1mm? 8mm, focal length is 2.5mm
3. Comparator output signal is clean, waveform is good, drive capacity is greater than 15mA
4. Multi-turn precision potentiometer to adjust sensitivity adjustment
Working voltage 3.3V-5V
6. Output format: digital switch output (0 and 1)
7. Fix bolt holes for easy installation
8. A small PCB board size: 3.2cm x 1.4cm
9. Use wide voltage LM393 comparator

Package Include :

1X KY-033 IR Sensor Module/Tracking sensor/Infrared Tracking Sensor Module
