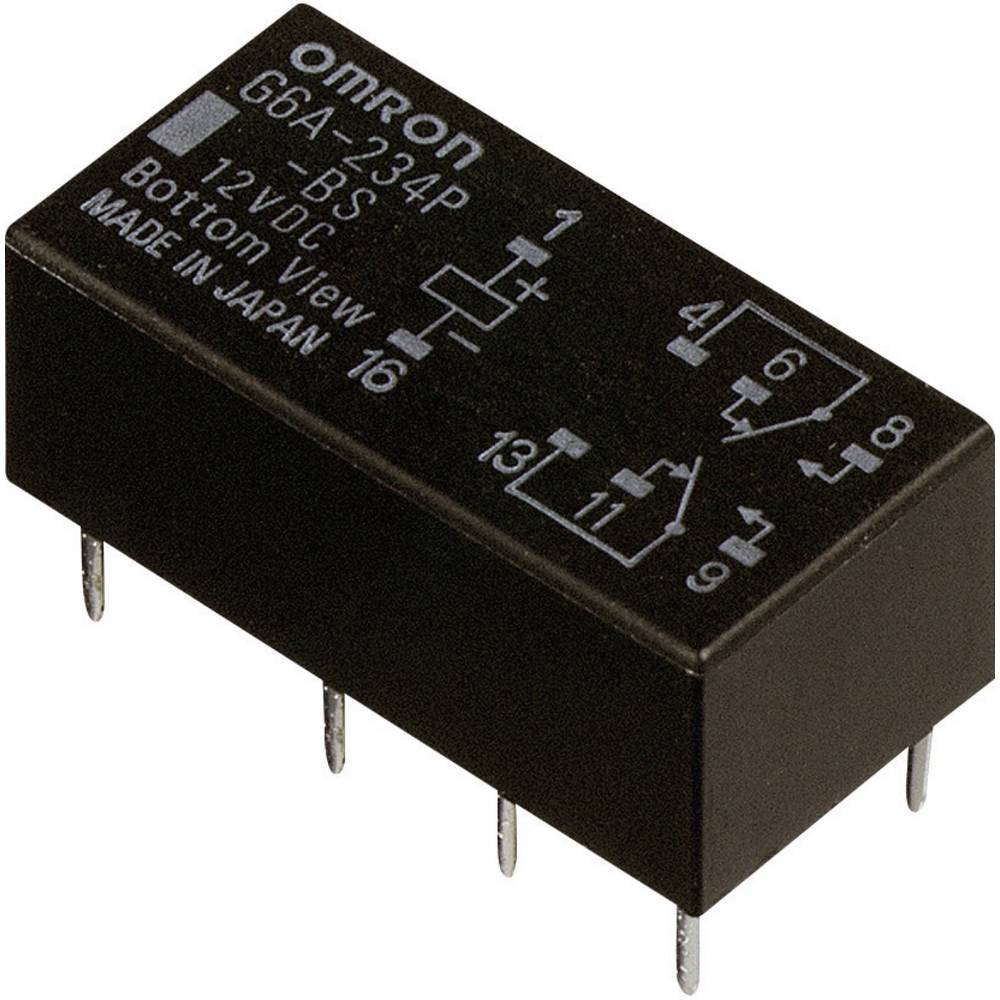

G6A Series DPCO
- Fully sealed
- Low magnetic leakage
- Impulse withstand voltage of 1500V
- Ideal for telecommunications equipment
Approvals
UL, CSA
Specifications:
| Attribute | Value |
|---|---|
| Coil Voltage | 12 V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2 A |
| Terminal Type | Through Hole |
| Coil Resistance | 514 Ω |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Length | 10mm |
| Depth | 20mm |
| Height | 8.2mm |
| Dimensions | 10 x 20 x 8.2mm |
| Maximum Switching Power DC | 60 W |
| Operating Temperature Range | -40 → +70°C |
| Contact Material | Gold Plated |
| Isolation Coil To Contact | 1kV ac |
| Maximum Operating Temperature | +70°C |
| Coil Power | 280mW |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Power AC | 125 VA |
| Special Features | Sealed |
| Life | 500000 (Mechanical) cycles, 100000000 (Electrical) cycles |
