MG996R Metal Gear Servo Motor 360 Degree in Pakistan

SKU: N/A
  • Current: 2.5A (6V)
  • Stall Torque: 9.4 kg/cm (at 4.8V)
  • Maximum Stall Torque: 11 kg/cm (6V)
  • Rotation : 0°-360°
  • Weight of motor: 55gm
  • Package includes gear horns and screws
  • Weight: 55g
  • Dimension: 40.7×19.7×42.9mm
  • Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
  • Operating voltage: 4.8~ 6.6v
  • Gear Type: Metal gear

700.00

Description

MG996R – Metal Gear Micro Servo Motor 360 Degree





Specification of MG996R Metal Gear Servo Motor 360 Degree MG946 Servo Motor for Arduino:



  • Current: 2.5A (6V)
  • Stall Torque: 9.4 kg/cm (at 4.8V)
  • Maximum Stall Torque: 11 kg/cm (6V)
  • Rotation : 0°-360°
  • Weight of motor: 55gm
  • Package includes gear horns and screws
  • Weight: 55g
  • Dimension: 40.7×19.7×42.9mm
  • Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
  • Operating voltage: 4.8~ 6.6v
  • Gear Type: Metal gear
  • Temperature range: 0- 55℃
  • Dead band width: 1us
  • Servo wire length: 32cm



The MG996R is a metal gear servo motor with a maximum stall torque of 11 kg/cm. Like another RC servo, the motor rotates from 0 to 360 degrees based on the duty cycle of the PWM wave supplied to its signal pin.



Wire Connection:



  • Brown: Ground wire connected to the grounded system
  • Red: Powers the motor typically +5V is used.
  • Orange: PWM signal is given in through this wire to drive the motor.

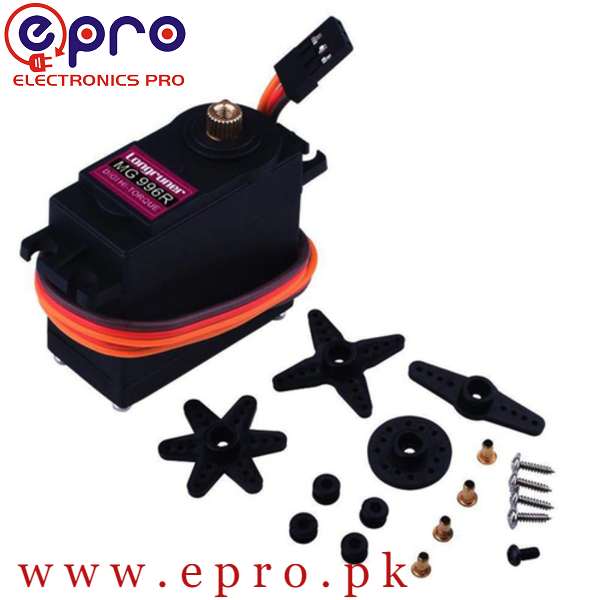

Package includes:

1 x MG996R Servo with servo horn Set
