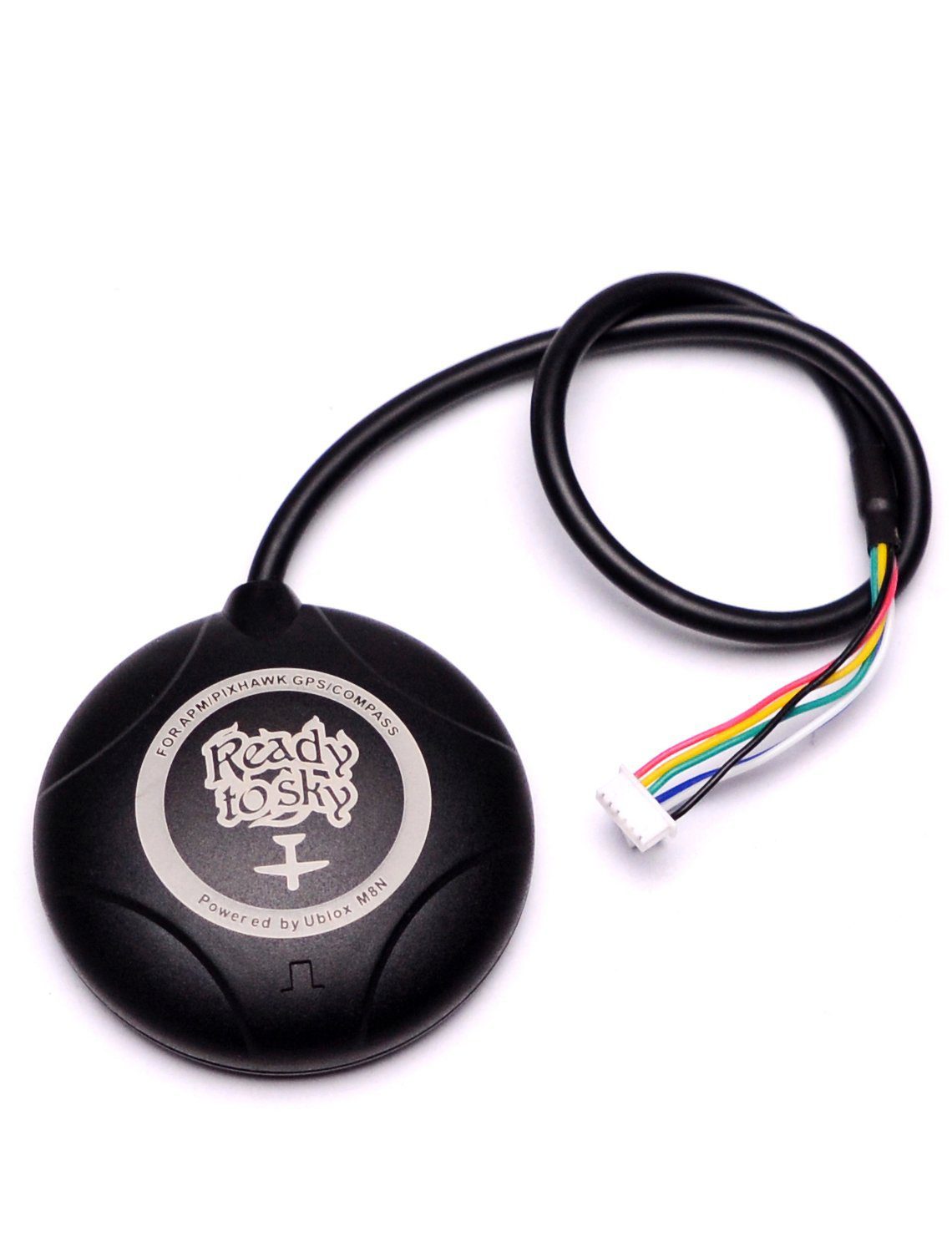

Ublox M8N GPS for Pixhawk with connector for APM in Pakistan

This is new generation Ublox NEO-M8N High Precision GPS Module with Built-in Compass for PIXHAWK and APM FC (Ready to connect to PIXHAWK FC) with onboard Compass, low power consumption, and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy, support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more.

Additionally, you can connect the same module to APM Flight Controller just after swapping the extra 5-pin connector provided in Package.

So if you want GPS telemetry for your FPV flying or camera ship?  This new generation Ublox GPS NEO-M8N is the answer.  Capable of accuracy between 0.6 and 0.9 meters it is a significant improvement over previous models. Sattelite searching and acquisition is very fast, generally taking around ten seconds to locate and acquire up to 6 satellites.  It also has a built-in compass with a 10Ghz refresh rate and a low noise figure which ensures this GPS module offers excellent performance.

The NEO-M8N provides the best performance and easiest RF integration of all the NEO-M8 configurations. The NEO form factor allows easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments. NEO-M8 combines a high level of robustness and integration capability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems.

Ublox NEO-M8N GPS Module for APM APM2.52 APM Flight Controller with Case and GPS Antenna Mount to protect the GPS preventing electromagnetic interference. A new generation Ublox GPS NEO-M8N GPS Module, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy. Support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more. The NEO-M8N and ceramic antenna make this a very accurate receiver, fast locks & lots of satellites, and the stand is very sturdy to protect the GPS preventing electromagnetic interference.

Note: When using 2.8 boards with our GPS module must remove the jumper, if you need to calibrate, make the control and GPS compass direction same and keep the two position fixed(cannot make any move, must fix them on the quadcopter and then calibrate, or it will be failed.)

Connector difference of PIXHAWK and APM FC:

Note: This Module comes with 6 pin connector connected by default (i.e.Ready to connect to PIXHAWK FC) and extra 5 pin connector for APM FC for Swapping.

If you need the module with 5 pins connector connected by default (i.e.Ready to connect to APM FC), It is  also available on our site having  SKU: 28952   (Click to see the product)

Watch the video to know how to swap the connectors.

Features:

1.  GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
2.  SBAS L1 C/A: WAAS, EGNOS, MSAS
3.  Galileo-ready E1B/C (NEO-M8N)
4. Onboard Compass
5.  Assistance AssistNow GNSS Online
6.  AssistNow GNSS Offline (up to 35 days)
7.  AssistNow Autonomous (up to 6 days)
8.  OMA SUPL & 3GPP compliant
9.  Oscillator TCXO (NEO-M8N/Q),
10.  Crystal (NEO-M8M)
11.  RTC crystal Built-In
12.  Noise figure On-chip LNA (NEO-M8M). Extra LNA for
13.  lowest noise figure (NEO-M8N/Q)
14.  Anti-jamming Active CW detection and removal. Extra
15.  onboard SAW bandpass filter (NEO-M8N/Q)
16.  Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
17.  Supported antennas Active and passive
18.  Odometer Travelled distance
19.  Data-logger For position, velocity, and time (NEO-M8N)
