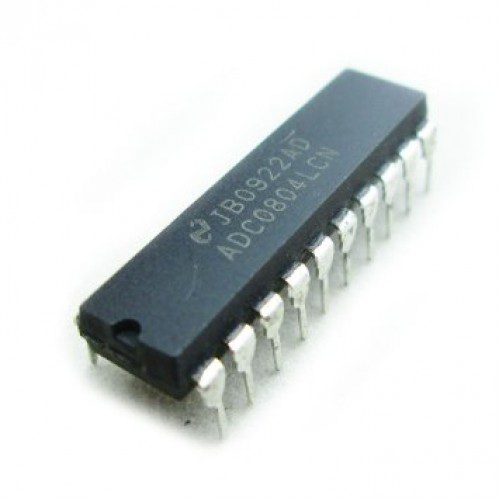

ADC0804 Single Channel 8-bit Analog to Digital Converter in Pakistan

SKU: N/A

The ADC080X family is CMOS 8-Bit, successive approximation A/D converters which use a modified potentiometric ladder and are designed to operate with the 8080A control bus via three-state outputs. These converters appear to the processor as memory locations or I/O ports, and hence no interfacing logic is required. The differential analog voltage input has good common- mode-rejection and permits offsetting the analog zero-input voltage value. In addition, the voltage reference input can be adjusted to allow encoding any smaller analog voltage span to the full 8 bits of resolution.

450.00

Description

Features:



  • 80C48 and 80C80/85 Bus Compatible – No Interfacing Logic Required
  • Conversion Time  <100µs
  • Easy Interface to Most Microprocessors
  • Will Operate in a “Stand Alone” Mode
  • Differential Analog Voltage Inputs
  • Works with Band gap Voltage References
  • TTL Compatible Inputs and Outputs
  • On-Chip Clock Generator
  • Analog Voltage Input Range
