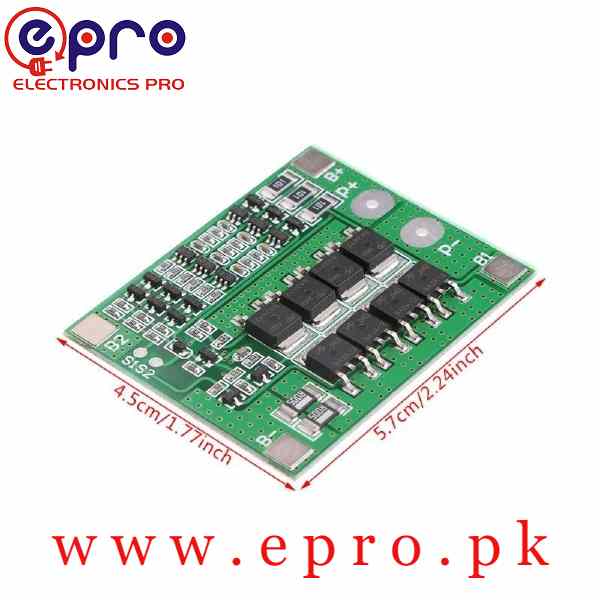

BMS 3S 40A Amps Lipo Battery Protection Board in Pakistan

SKU: N/A
  • Overcharge voltage range is 4.28V +- 0.05V / per cell
  • Size is 70 x 60 x 8.5mm.
  • Over-discharge voltage range is 2.5 +- 0.05V.
  • The upper limit working current is 100A.
  • Its working temperature is -40 to 80 degrees Centigrade.
  • Quiescent current is less than 30 microamp.
  • Effective life is more than 30,000 hours.
  • Internal resistance is less than 300m ohms.
  • Short circuit protection, delay self-recovery.
  • Over Charge voltage:4.25-4.35v±0.05v
  • Equilivrium current is 65mA.
  • The charging voltage is 12.6V to 13V.
  • Max Working current:25A
  • Over Discharge voltage: 2.3-3.0v±0.05v
  • Charging current upper limit is 10A.
  • Max peak current:35-40A

530.00

Description

3S 25A LI-ION 18650 BMS PCM BATTERY PROTECTION BOARD BALANCE LIPO MODULE



Over Charge voltage:4.25-4.35v±0.05v
Over Discharge voltage: 2.3-3.0v±0.05v
Max Working current:25A
Max peak current:35-40A
Working temperature:-40—+50
Storage Temperature:-40– +80
Small current:50uA
Life cycle:more then 30000 hours
Resistance:Less than 100mΩ
Short Cut: Protectable, Charge can repair

Features:

Note: battery internal resistance differences within 5 milliohms, the voltage within 0.03 V voltage, capacity vary within 50 ma

Features:

1) high-accuracy voltage detection circuit;

2) terminal of the charger using a high voltage device;

3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);

4) MOS transistor can control the battery charge and discharge;

5) low standby current consumption.



Brief Parameter:



  • Overcharge voltage range is 4.28V +- 0.05V / per cell
  • Size is 70 x 60 x 8.5mm.
  • Over-discharge voltage range is 2.5 +- 0.05V.
  • The upper limit working current is 100A.
  • Its working temperature is -40 to 80 degrees Centigrade.
  • Quiescent current is less than 30 microamp.
  • Effective life is more than 30,000 hours.
  • Internal resistance is less than 300m ohms.
  • Short circuit protection, delay self-recovery.
  • Over Charge voltage:4.25-4.35v±0.05v
  • Equilivrium current is 65mA.
  • The charging voltage is 12.6V to 13V.
  • Max Working current:25A
  • Over Discharge voltage: 2.3-3.0v±0.05v
  • Charging current upper limit is 10A.
  • Max peak current:35-40A



Caution:  Balancer is just an Auxiliary function, The balancing means when the battery charging, each series battery needs with the same voltage. when ONE cell voltage gets 4.2V, the other cells not, the first cell voltage will discharge to wait the other cells rising to the same level.
Package Included:
1PC   25A 3S PCB BMS li-ion lithium battery 18650 charger protection board For 3 Packs 18650 Li-ion Lithium Battery Cells
