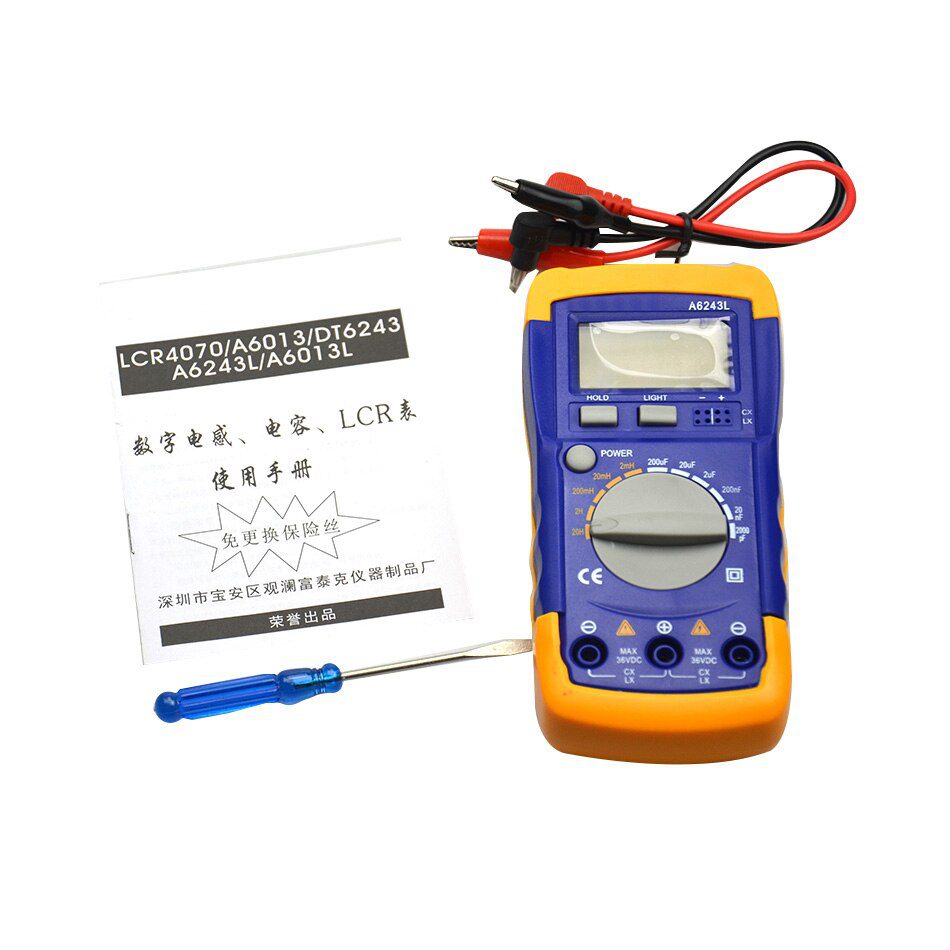

LCR Meter Holdpeak A6243L in Pakistan

Display Backlight

• Data hold
• LCD size: 44mm x 28mm
• Product size: 140mm x 70.6mm x 31mm
• weight: 200g light conditions.
• Easy and correct readout;
• High measuring accuracy;
• Measurement are possible even under a strong magnetic field.
• LSI-circuit provides high reliability and durability;
• input overload protection is provided;
• LCD display for low power consumption and clear readout even in bright ambient
• In-line pushbuttons allow one hand operation.
• Light-weight and compact construction for easy operations.
• Low battery condition is indicated on the LCD display.Specification:

  Power supply: single, standard 9V

  The package includes:

  1) One Inductor/capacitor meter;

  2) A pair of Test alligator clips (Red and Black);

  3) English Manual;

  SPECIFICATIONS

  Function	Range	Resolution	Accuracy
  C	2nF, 20nF, 200nF, 2uF, 20uF	1pF	±(1.5%+5d)
  	200uF		±(2.0%+5d)
  L	2mH, 20mH, 200mH	1uH	±(2.0%+5d)
  	2H, 20H		±(5.0%+5d)
  Power	9V(NEDA1604/6F22)×1
  Max.display	1999

  • Display: LCD Max indications: 1999
  • Measurement: L(Inductor); C(Capacitor)
  • Zero Adjustment: Auto
  • Over-Range: Display shows “1”;
  • Sampling rate: 3 times/sec;

  • Operating Temp: 0C to 40C, humidity<80
