W3001 12V 10A Digital LED Temperature Controller NTC Thermostat Sensor Module

Specifications of W3001 12V 10A Temperature Controller:

. Model No :XH-W3001

. Color White

. Operating Voltage Range : 6V to 12v

. Rated Power (W) : 120W

. Rated Current (AMP) : 10AMP MAX.

.Measuring Accuraccy : 0.2

.Dimensions (mm) LxWxH : 60 x 45 x 31

. Weight (gm)  : 55 (G)

. Material : Plastic Box

. 1x W3001 12V 10A Digital LED Temperature Controller NTC Thermostat Sensor Module

600.00

Description

Product Description:

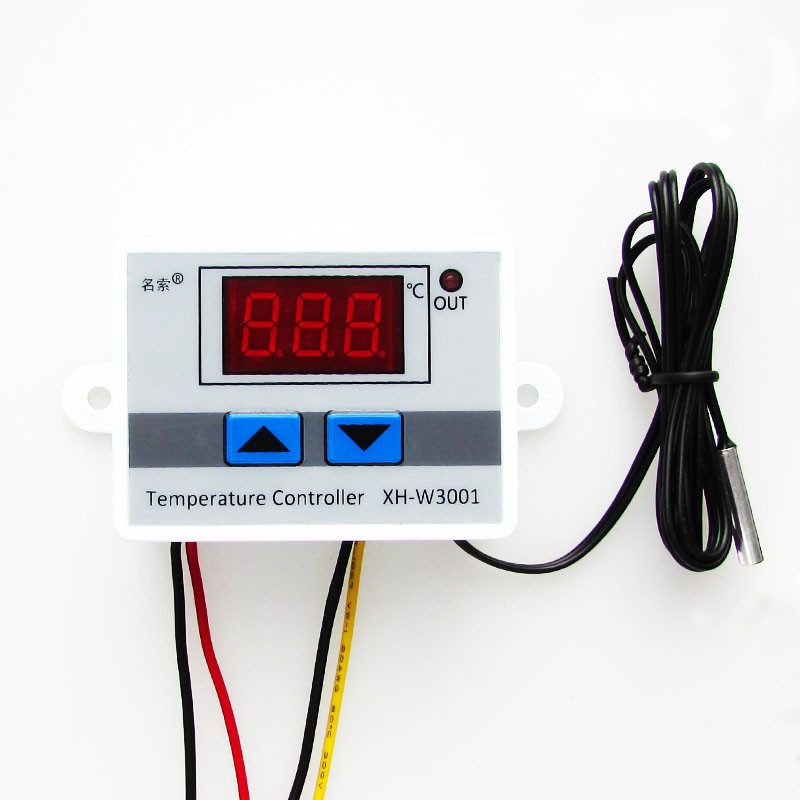

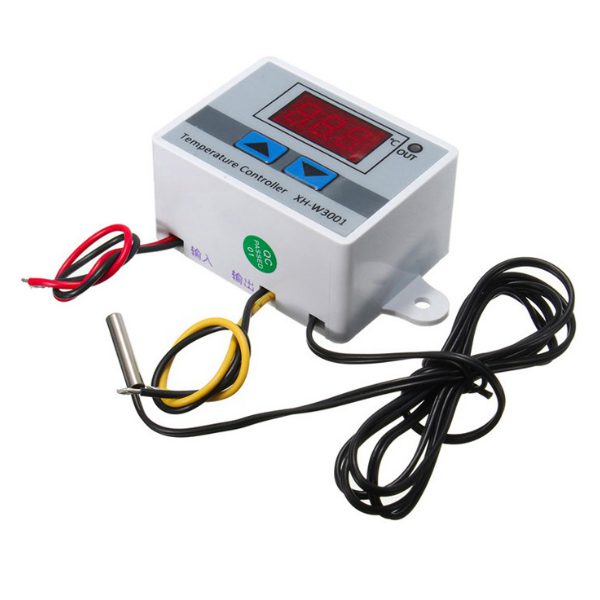

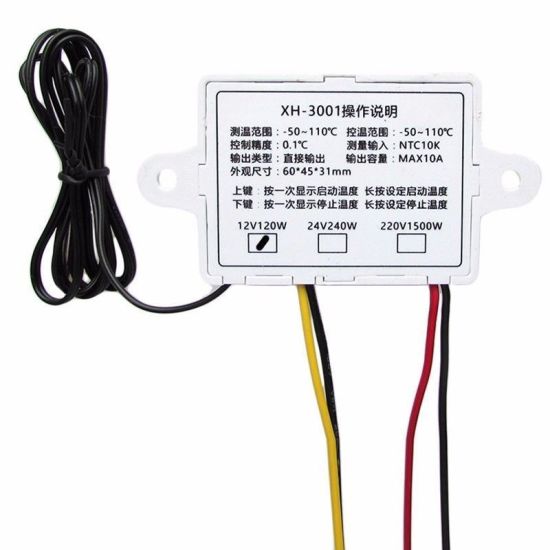

W3001 12V 10A Digital LED Temperature Controller NTC Thermostat Sensor Module

This is the type of thermostat and this thermostat could be used in both conditions either for heating or cooling devices. this temperature controller also uses a start and stops temperature. to use this device, we need to set the temperature of the device according to the requirements. to set the temperature, just press and hold one of the two buttons until the screen flashes. When we press and hold the left button, we can adjust the relay start-up temperature and the relay right-hand temperature. after setting the temperature, the screen will stabilize. after a short time, this temperature controller displays the temperature read by the sensor. Get all types of temperature controllers at epro.pk.

Button functions :-

  1. Press UP to show start temperature button.
  2. On Long press of the UP button, the display starts Flashing, then press the UP or DOWN button Set the beginning of the temperature value
  3. Press Down the display button to stop temperature.
  4. On Long press of the Down button, the display starts Flashing, then press the UP or Down button Set to stop the temperature value.

Features of W3001:

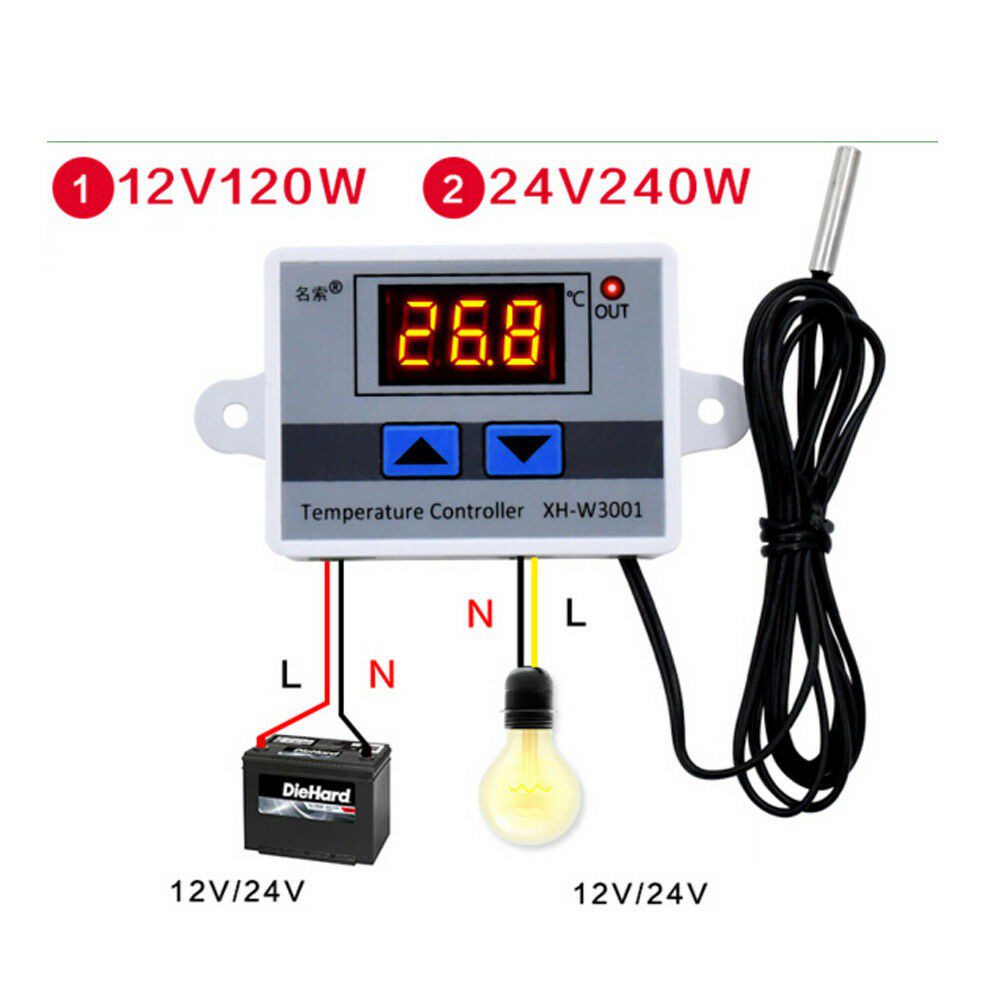

This device can be used for both heating and cooling appliances.

a. if the user wants to use this temperature controller for heating appliances, the start temperature must be lower than the stop temperature.

b. if the user wants to use it for cooling appliances, the start temperature must be higher than the stop temperature.

1X  W3001 12V 10A Digital LED Temperature Controller NTC Thermostat Sensor Module
