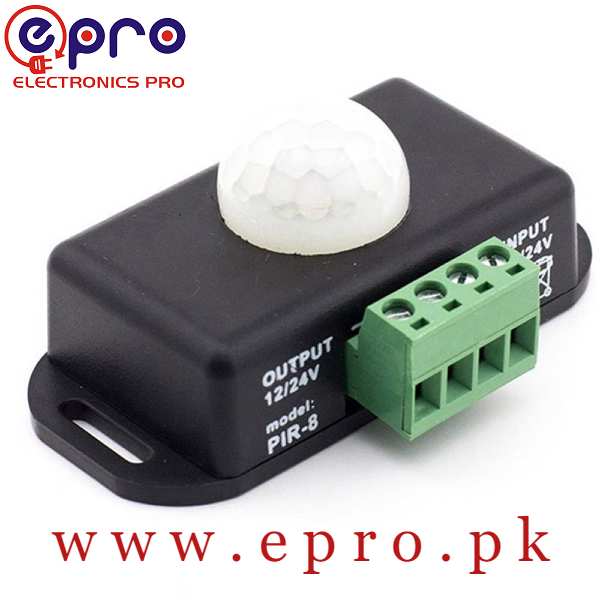

DC12V 24V PIR Sensor LED Dimmer Switch Motion Function PIR8 PIR-8 Controller for 5050 3528 5630 Flexible LED Strips Light

PIR8 Infrared detection controller adopts an infrared detection way to control the load switch. It is an LED lighting motion sensing switch. And it provides 1 to 10 minutes OFF delay timing function.  This sensor switch will be activated when a body in motion enters the field which was set by the user. This sensor has an effective range of 16 feet and diminished sensing of a moving human body to 26 feet. Get all types of sensors, modules, drone frames, motors, and much more from Pakistan’s best online store epro.pk.

Features of DC 12V 24V PIR8 Sensor LED Dimmer Switch:

• This infrared detection controller adopts the way of infrared detection to control the load switch.
• This sensor is adjustable so the user can install the human body sensors in the appropriate environment according to the actual you need.
• This PIR8 sensor provides a 1 to 10 minute OF delay timing function.
• This sensor gets activated when a body in motion enters the field of view with an ON time hold that is adjustable from 1 to 10 minutes after motion has ceased.
• This PIR or Passive Infrared sensor has an effective range of 16 feet and diminished sensing of a moving human body to 26 feet.
• Its lens is 60 degrees nominal.
• This IR sensor operates on 12 to 24V volts DC. And it can be switched up to a 6amp load.

Specifications of PIR-8 Controller for 5050 3528 5630 Flexible LED Strips Light:

• Its alternate name is body sense infrared LED strip controller.
• Its power supply voltages are 12 to 24 volts.
• Its output voltages are 12 to 24V.
• Its maximum load current is 6A.
• Its induction range is 8m.

Package included:

One Piece of PIR8 Controller 12V 24V PIR Sensor LED Dimmer Switch Motion Timer Function Sign Control LED Strip Tape Lights.
